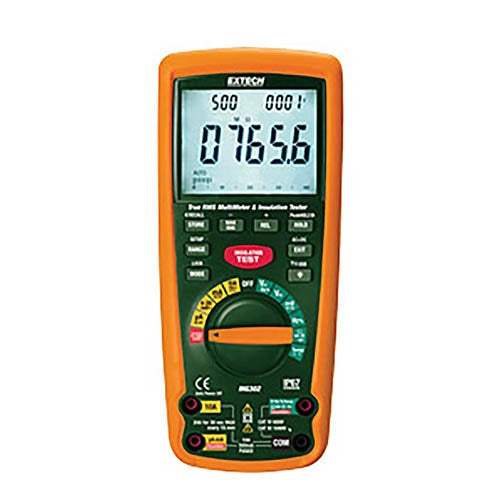

MG302 Extech Insulation New

MG302 Extech Insulation New

Regular price $439.99
Sale price $439.99 Regular price $0
Shipping calculated at checkout.
0 Reviews
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

  • Wireless USB interface transmits measurement data to a PC
  • Backlit super large triple display
  • 125V, 250V, 500V, and 1000V test voltages
  • Insulation Resistance from 0.001MOhm to 4000MOhm
  • Auto discharge of capacitive voltage
  • Lock Power On Function for hands-free operation
  • Data Hold, Min/Max, Relative mode, Auto power off
  • Complete with USB receiver, Windows® software, test leads & alligator clips, bead wire temperature probe, carrying case and batteries
  • USA, Mexico, and Canada use 915MHz model MG300 and majority of other countries use 433MHz model MG302
View full details

Specifications

  • Insulation Resistance: 4MΩ, 40MΩ, 400MΩ, 4000MΩ
  • Insulation Test Voltages: 125V, 250V, 500V, 1000V
  • AC/DC Voltage: 1000V
  • AC/DC Current: 10A
  • Resistance: 40MΩ
  • Capacitance: 40mF
  • Frequency: 100MHZ
  • Duty Cycle: 0.1 to 99.9%
  • Temperature: -58 to 2192°F (-50 to 1200°C)
  • 4-20mA%: -25 to 125%
  • Continuity/Diode: yes
  • Dimensions/Weight: 7.8 x 3.6 x 1.9" (200 x 92 x 50mm)/ 20.5oz (582g)

The MG302 is a true RMS multimeter with a built-in insulation resistance tester and the added safety of wireless data streaming for remote monitoring and data recording. By adding insulation testing capabilities to this CAT IV-rated digital multimeter, electrical troubleshooters will always be equipped for insulation testing, helping to make it a more routine part of predictive maintenance with faster troubleshooting and repairs without the need for additional tools. The rugged and waterproof (IP67-rated) combination meter includes a digital insulation resistance tester (or megohmmeter) with four different test voltages for measuring resistance up to 4GΩ with 0.001MΩ resolution. The full-function, true RMS digital multimeter includes useful extras, like duty cycle measurements and milliamp readings for analog 4-20mA current loops in industrial analog process controls. The MG302 also has built-in wireless data recording for safer troubleshooting and maintenance on moving equipment, one-person operation of remote safety switches, and the ability to monitor real-time readings on a laptop or computer screen from safe distances — up to 30 feet away — to detect intermittent anomalies. The MG302 comes with a remote USB receiver, Windows compatible software, test leads with alligator clips, Type K bead wire temperature probe with adapter, carrying case, six AA batteries, and user manual.

Model No

MG302

Condition

New

Manufacturer

Extech
