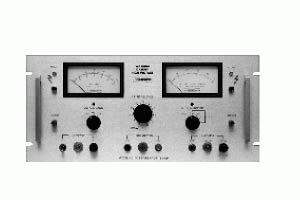

HD106 Hipotronics HiPot Used

HD106 Hipotronics HiPot Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Input Voltage: 120V, 60 Hz: A version; 230V, 50 Hz: B version
  • Output Voltage: 0-5.0kV AC; 0-6.0kV DC
  • DC Output Voltage: Negative output, positive ground
  • Metering: 4.5" analog meters, ±2% full scale accuracy
  • Voltmeter: 0-1.2/3.0/6.0kV
  • Current Meter: 0-50/500/5000μA DC and 0-5mA AC
  • Continuously adjustable test voltage from zero to rated voltage
  • Shielded output cable
  • Adjustable Overload from 10 to 110% of rated current output
  • Audible/Visual alarms provide a clear indication of overload situation
  • Zero start interlock ensures that the voltage control is at zero before HV can be energized
  • Shorting solenoid grounds output cable and object under test
Share on
View full details
More Details
Specifications
Datasheets
Manuals

The HD106 AC/DC Hipots are accurate, durable instruments designed to perform HiPot tests on all types of electrical products, system, and components. They are simple to operate and designed for use by unskilled or semi-skilled personnel in production testing.

The AC/DC output configuration eliminates the need for purchasing separate AC and DC hipots. Output connected voltmeter ensures accurate voltage measurements regardless of output loading. They are capable of testing to most industry specifications such as UL, CSA, VDE, IEC, and MIL for dielectric withstand testing.

The image is a representation of selection. See specifications for product details.

Model No

HD106

Condition

Used

Manufacturer

Hipotronics
