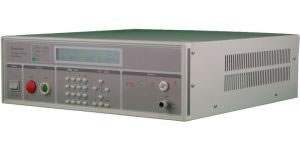

GUARDIAN 10KV QuadTech HiPot Used

GUARDIAN 10KV QuadTech HiPot Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • AC HiPot Voltage 100 to 10,000V, Output Current to 20mA
  • Programmable Ramp and Test Times
  • Fast Cutoff and Quick Discharge of Device Under Test
  • Programmable Hi/Lo Limits for Pass/Fail Testing
  • LCD Display for Menu Programming and Test Results
  • Internal Storage and Recall of 50 Test Setups, 10 Steps Each
  • Front and Rear Panel Output Connections
  • Front Panel Lockout Prevents Changes to the Test Setup
  • Automatic Offset to Zero Out Stray Leakage Current
  • Remote I/O Interface Included Standard
  • RS-232 Interface Standard
  • IEEE-488 and Printer Interfaces: Optional
  • External 8 Channel Scanner: Optional
Share on
View full details
More Details
Specifications
Datasheets

AC HiPot Applications:

  • Production or Compliance Testing of Appliances, Wire, Cable, and Other Electrical Products which have High Leakage Current
  • Testing to Safety Standards which Require or Recommend a 500VA Tester
  • Testing of Electrical Products Requiring the Application of High AC or DC Voltages
  • Testing of Transformers, Coils, and Large Horsepower Motors

The Guardian 10kVAC HiPot Tester performs AC HiPot Testing only, over the voltage range from 100 to 10,000V AC. With maximum current output of 20mA, the instrument is capable of testing capacitive devices at high AC voltages. The 10kV unit contains many of the features of the 500VA Tester including programmable min/max limits, setup storage and arc detection.

Model No

GUARDIAN

Condition

Used

Manufacturer

QuadTech

Chroma Guardian 500VA 10kV AC 12kV DC 20kV DC
Compare All Models
