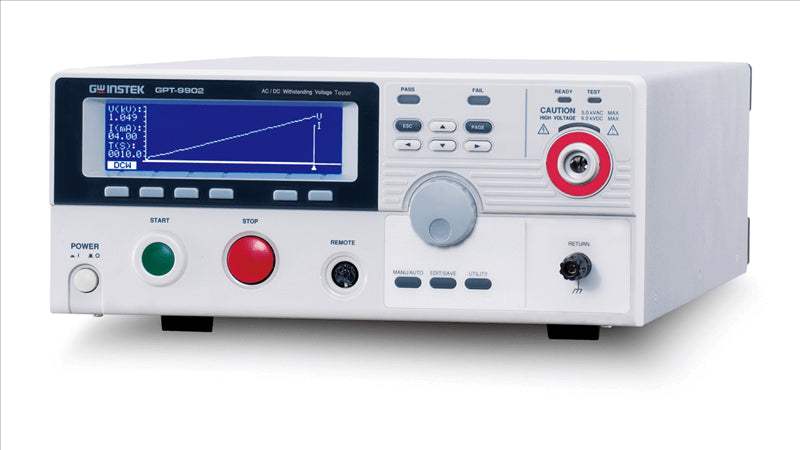

The Instek GPT-9902A is an AC 500VA AC Withstanding Voltage Tester and is built upon a platform of maximum power output AC 500VA which supports the major test items complying with safety standards, such as IEC, EN, UL, CSA, GB, JIS as well as other safety regulations.
The GPT-9902A safety tester inherits every feature and advantages from the GPT-9800 Series. The high-efficiency PWM amplifier, which is designed to impede the influence caused by voltage fluctuation of input AC source, is the core of GPT-9900 platform. The output voltage is automatically cut off (within 150μs) upon the detection of an abnormal output voltage or a trip of current limits during the measurement to protect the operators from hazardous injury. The safety tester will automatically discharge the DUT after each test to eliminate excessive voltage remained inside DUT.
Model No
GPT-9902A
Condition
New
Manufacturer
Instek
["GPIB Option
Opt. 1 GPIB Card
OPEN BOX
Unit is in "Like New" condition and comes with original packaging"]
