19056 Chroma HiPot New

Shipping calculated at checkout.

Calibrations None NIST Traceable NIST Traceable With Full Data ISO IEC 17025 Accredited

Product variants

Request a Quote

Additional Features:

10kV AC withstand voltage test
0.1MΩ~50GΩ insulation impedance test
BDV (BreakDown Voltage test)
HVCC (High Voltage Contact Check)
HFCC (High Frequency Contact Check)
OSC (Open Short Check)
GFI (Ground Fault Interrupt)human protection circuit
Fast charge/discharge function
Programmable output & test limit
Standard RS232 interface
Optional GPIB & HANDLER interface
Key lock function
CE Mark
2 Year Factory Warranty

View full details

More Details

Specifications

Datasheets

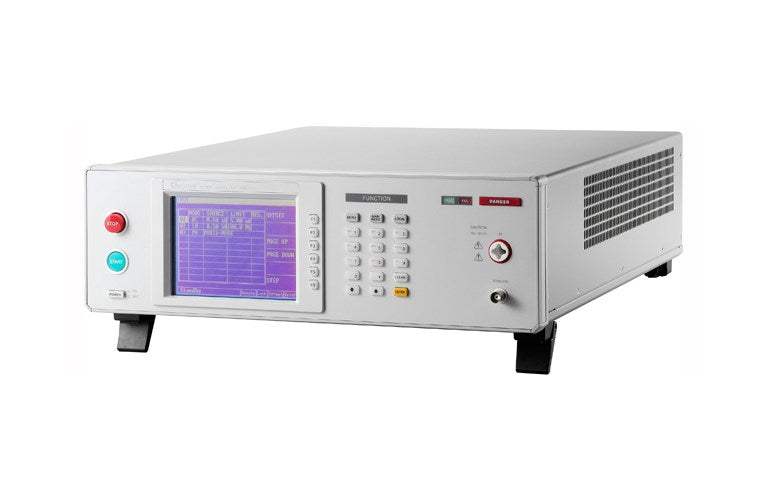

The Chroma Guardian 19056 HiPot Analyzer is specially designed for testing and analyzing ultra-high withstand voltage. In addition to the patented OSC (Open Short Check), High Voltage Contact Check is added to test the components with high insulation capability when high voltage outputs to improve the testing reliability and efficiency. The Guardian 19056 with GFI (Ground Fault Interrupt) is designed to protect operator's safety when abnormal ground current (A2-A1) occurs.

The HiPot Analyzer provides high withstand voltage testing and analysis for optical couplers, HV relays, HV switches and PV modules, which have better insulation capability.

Model No

19056

Condition

New

Manufacturer

Chroma

Chroma 19056 19057 Series
