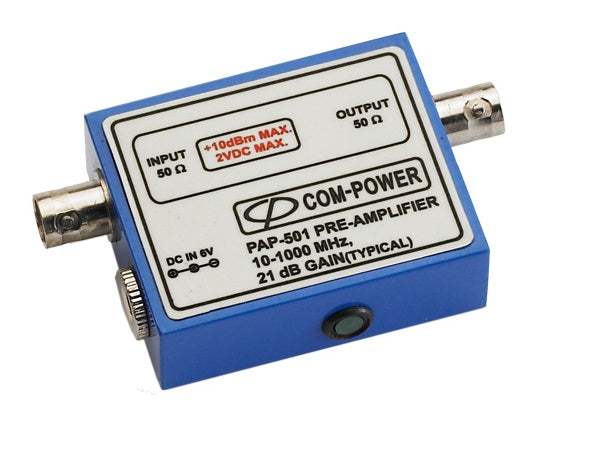

PAP-501 Com-Power Preamplifier New

PAP-501 Com-Power Preamplifier New

$710
$710 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Frequency Range: 10 to 1000 MHz
  • Nominal Gain: 20 dB ±1
  • Gain Flatness: ± 2 dB
  • PIdB: +10 dBm
  • Pout @ 1 dB comp: +6 dBm
  • Typical Noise Figure: 6 dB
  • Output Impedance: 50 Ω
  • I / O Connection: BNC (f) input, BNC (m) Output
  • Power Input: 12 VDC, 200 mA
  • Power input plug type: 2.1 (ID) x 5.5 (OD) center pin positve
  • Small Form Factor
  • Extremly Portable
  • Perfect Preamp for Near Field Probe Sets
View full details
More Details
Specifications
Datasheets

The Com-Power PAP-501 broadband high gain preamplifiers were designed for electromagnetic interference (EMI) testing and certification.  EMC test labs use preamplifiers to improve sensitivity of the test system during EMI radiated emissions measurements. Without a high gain preamplifier, signals picked by the antenna that have amplitudes below the noise floor of the test system cannot be measured.

The preamplifier gain has minimum variations for the entire operating frequency range for accurate emissions measurements. The Com-Power preamplifiers were primarily intended for EMC applications. However, it can be used for other applications that require signal amplification.

Model No

PAP-501

Condition

New

Manufacturer

Com-Power

Frequency

1 Hz

Com-Power PAP-501
