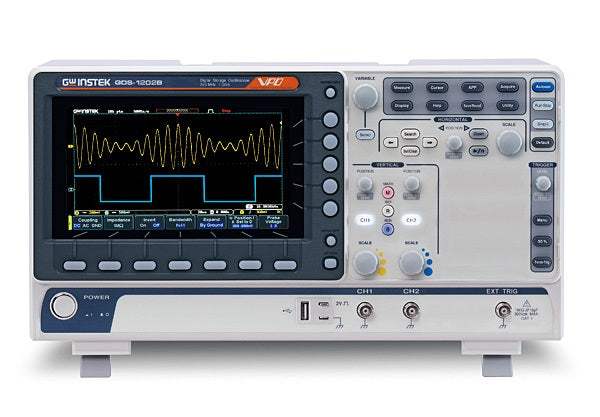

The GDS-1202B 200 MHz bandwidth and equips with analog signal input terminals by two channels. The maximum sampling rate for each single channel is 1GSa/s, and the memory depth is 10Mpts per channel independently. The GDS-1202B has a waveform update rate of 50,000wfms/s, which helps users to precisely observe the detailed waveform variation. Additionally, 7” WVGA color LCD display and the 256 color gradient display function together allow waveforms to be observed with the senses of transparency and gradation.
With respect to the horizontal time scale adjustment knob and trigger level adjustment knob, GW Instek provides a very thoughtful design -the zero key function, which allows engineers to work more effectively. For mathematical analysis mode, 1Mpts FFT signal display makes the dull frequency domain signal analysis more delicate.
Moreover, the innovative exterior design and compact design also bring much convenience to users. Other diversified and charming multi-functional operation demonstrates the concept of complete technology integration.
Model No
GDS-1202B
Condition
New
Manufacturer
Instek
Channels
2
Frequency
200 MHz
Record length
10 MPts
Sampling rate
1 GS/s
