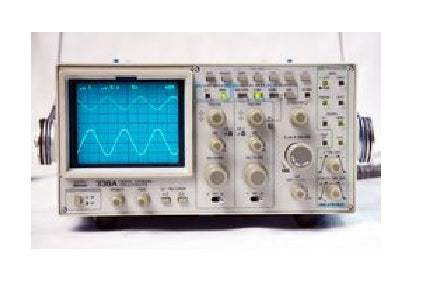

336 Tektronix Digital Oscilloscope Used

336 Tektronix Digital Oscilloscope Used

Check Pricing
Request a Quote

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • 1 MS/s, 140 kHz Useful Storage Bandwidth
  • Cursors for Time and Voltage Measurements Signal Averaging
  • Envelope Mode
  • GPIB and 8 Screen Memory Option (16 k)
  • 50 MHz Non-storage Bandwidth
  • CRT Readout
  • GPIB (talker only) is optional on the 336. Included in the option is a memory backup of up to eight screens (two 1k waveforms each) of information
  • The 336 with Option 01 complies with IEEE Standard 488-1978, and with Tektronix Standard Codes and Formats
Share on
View full details
More Details
Specifications
Options
Datasheets

Characteristics

  • Speed: Digitizing rates up to 1 megasample/s.
  • Useful Storage Bandwidth: Real Time Sampling: Dc to 140 kHz (-3 dB). Equivalent Time Sampling: Dc to 50 MHz (-3 dB).
  • Resolution: Vertical: Eight bit. Horizontal: Ten bit.
  • Memory Size: Standard: 2 kbyte (one frame of two waveforms). Option 01: 16 kbyte (up to eight frames of two 1 k waveforms each storage capacity). Data Retention: At least 3 days (after-8 hours of operation).
  • Deflection: 5 mV/Div to 10 V/Div in 1–2–5 sequence
  • Input impedance: 1 MΩ
  • Maximum input: 200 VDC + V peak / 200 Vp-p AC
  • Sweep: 0.2 s/Div to 0.1 µs/Div in 1-2-5 sequence, Ă—10 magnifier down to 10 ns/Div, variable to Ă—2.5. Roll mode beyond 0.2 s/Div
  • CRT: P31 phosphor, 8 Ă— 10 divisions of 0.6 cm; 12 kV acceleration voltage
  • Line Voltage: 90–132 V, 180–250 V, 48–440 Hz
  • Power: 50 W

The 336 is a combination non-storage and digital storage portable oscilloscope. It is capable of displaying analog and digitized waveforms simultaneously, and can store up to 18 digitized waveforms for recall and display.

The 336 is a microprocessor controlled instrument that incorporates alphanumeric CRT readouts of the vertical and horizontal scale factors, the delay time position, and voltage and time readouts of the cursor positions. Many of the oscilloscope features and modes are chosen from a menu displayed on the CRT rather than from hard-wired front-panel switches. Also included is an Auto mode for both vertical volts per division and horizontal time per division, allowing "hands off" operation in many applications.

The 336 has a dual-channel, dc-to-50 MHz vertical deflection system for both non-storage and equivalent-time digitizing. Storage bandwidth for single sweep events (waveforms acquired as the result of a single triggering event) is dc-to-140 kHz. The vertical channels have calibrated deflection factors from 5 mV to 10 V per division with a choice of either ac or dc input coupling. In the Non-store mode, the 336 operates like a conventional oscilloscope.

Model No

336

Condition

Used

Manufacturer

Tektronix

Channels

2

Frequency

50 MHz

Record length

2 kPts

Sampling rate

1 MS/s

1

GPIB Interface/Extended Memory

Tektronix 336
Compare All Models
