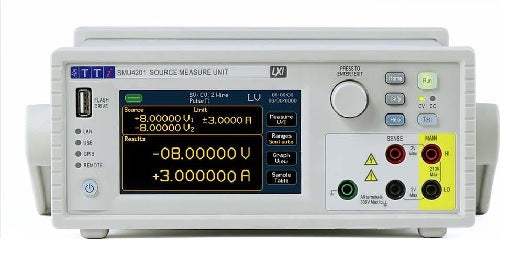

SMU4201 Thurlby Thandar Instruments Sourcemeter New

SMU4201 Thurlby Thandar Instruments Sourcemeter New

$5,250
$5,250 $0
Shipping calculated at checkout.
Optional:
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Four quadrant source, sink and measure
  • Maximum voltage: ± 210V
  • Voltage range: 20mV to 200V
  • 0.015% basic accuracy with 6.5 digit resolution
  • 0.1µV and 100fA resolution
  • Sense terminals for 4 wire operation and guard capabilities
  • Powerflex technology achieves full instrument output power across the majority of the voltage range
  • Internal memory, up to 100k measurements and 100k steps
  • Optional SMU Link allows two SMUs to be linked together for synchronous operation
  • Fast measurement speeds up to 200µs (5k/s)
View full details
More Details
Specifications
Options
Datasheets

The SMU4000 integrates a fast and agile, high-power four-quadrant voltage / current source with a precise voltage/current meter in a compact, half-rack 2U casing. It is capable of precisely supplying positive and negative voltages, sourcing or sinking power, all while simultaneously measuring both current and voltage for I-V characterization.

With high current and power combined with fast measurements and low glitch auto-ranging speed, it is the ideal solution for a wide variety of applications. The SMU4000 is an all-in-one solution for simplifying test applications such as battery charging/discharging, I-V characterization, semiconductor testing and more.

Model No

SMU4201

Condition

New

Manufacturer

Thurlby Thandar Instruments

Volts

200 V

Volts

25 W

Amps

3 A

SMULINK

optional accessory

Thurlby Thandar SMU4000 Series
