• ACD-14 PLUS Amprobe Clamp Meter
1 1
New
Earn Loyalty with Rewards
Compare

ACD-14 PLUS Amprobe Clamp Meter New

ACD-14 PLUS Amprobe Clamp Meter New

$252.99
$252.99 $252.99
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

  • Dual displays permit simultaneous reading of amps and volts
  • Measures AC Current to 600A and AC/DC Voltage to 600 V
  • Measures frequency, capacitance to 3000 µF, and resistance to 40M?
  • Measures temperature with K-type thermocouple probe
  • Includes micro amps measurement for testing flame sensors
  • Diode test quickly finds voltage drops
  • Continuity beeper detects opens and shorts
  • Auto ranging instantly selects correct range
  • Hold and maximum reading functions
  • New thin jaws, 5 mm thinner than standard digital clamp meters make it easier to access conductors in tight spaces
  • Accommodates conductors up to 1.0″ (25 mm) in diameter
  • Auto power off and low battery indication helps you make the most of battery life
  • Rubber, over-molded case absorbs shock
View full details
More Details
Specifications
Datasheets

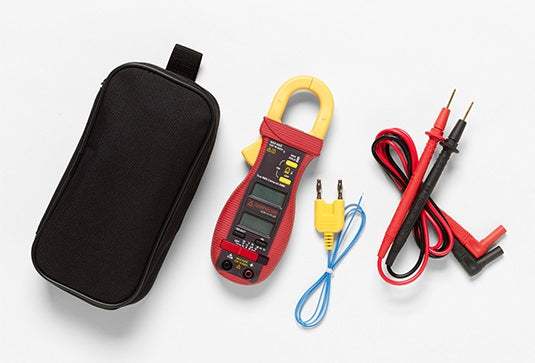

Accessories (Included)

  • ACD-14 PLUS
  • Test leads
  • Battery (installed)
  • Soft carrying pouch
  • Type-K thermocouple with banana plug

Specifications

  • AC Voltage: 4.000 V, 40.00 V, 400.0 V, 600 V
  • DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
  • AC Current: 40.00 A, 400.0 A, 600 A
  • Resistance: 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
  • Capacitance: 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF
  • Frequency: 40 Hz → 400 Hz with Jaw, 10 Hz → 100 kHz with test leads
  • Temperature: -4 °F → 999 °F (-20 °C → 537 °C)
  • Dual displays: Yes
  • Micro Amps: Yes
  • Accommodates conductors up to 1.0″ (25 mm) in diameter

The ACD-14 PLUS is a 600 V, 600 A clamp meter from Amprobe. The ACD-14 PLUS clamp meter works as both an HVAC multimeter and electrical multimeter with a versatile set of features, including microamps, capacitance, frequency and temperature with included thermocouple.

Model No

ACD-14

Condition

New

Manufacturer

Amprobe

Amps

600 A

Volts

600 V

Amprobe ACD-14 PLUS Datasheet
