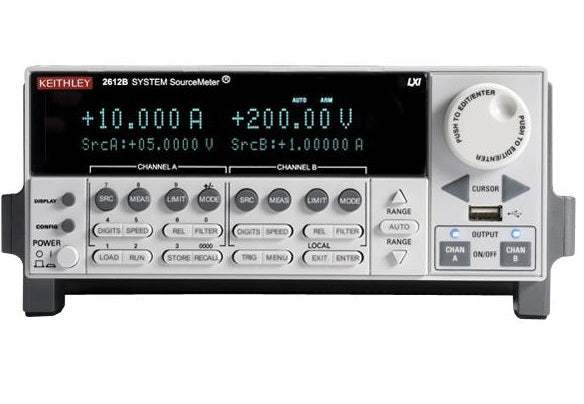

2612 Keithley Sourcemeter Used

2612 Keithley Sourcemeter Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Dual-channel System SourceMeter Instrument (200V)
  • Combines a precision power supply, true current source, DMM, arbitrary waveform generator, V or I pulse generator with measurement, electronic load, and trigger controller—all in one instrument
  • 10,000 readings/s and 5,500 source-measure points/s to memory provide faster test times
  • The embedded Test Script Processor (TSP™) offers unparalleled system automation and two to four times the test throughput of competitive products in I-V functional test applications
  • TSP-Link™ master/slave connection seamlessly integrates multiple Series 2600 SourceMeter channels into a system that can be programmed and controlled as a single instrument
  • Free Test Script Builder software simplifies creating powerful test scripts for programming custom test functions
  • Each SourceMeter channel is electrically isolated for high integrity measurements and wiring flexibility
  • Industry’s highest SMU rack density for automated test applications
  • Contact check function ensures high integrity measurements (2601/2602/2611/2612)
Share on
View full details
More Details
Specifications
Datasheets

Series 2600 System SourceMeter instruments offer electronic component and semiconductor device manufacturers a scalable, high throughput, highly cost-effective solution for precision DC, pulse, and low frequency AC sourcemeasure testing. Building on the tightly integrated source-measure technology originally developed for Keithley’s popular Series 2400 SourceMeter line, Series 2600 instruments provide from two to four times the test speed of competitive solutions in I-V functional test applications.

They also offer higher source-measure channel density and a significantly lower cost of ownership than competing products. The analog-to-digital converters provide simultaneous I and V measurements in less than 100μs (10,000 rdgs/s) and source-measure sweep speeds of less than 200μs per point (5,500 points/s). This high speed source- measure capability, plus advanced automation features and time-saving software tools make Series 2600 SourceMeter instruments an ideal solution for I-V testing of a wide range of devices.

The image is a representation of selection. See specifications for product details.

Model No

2612

Condition

Used

Manufacturer

Keithley

Volts

200 V

Volts

60 W

Amps

1.5 A

Keithley 2600 Series
