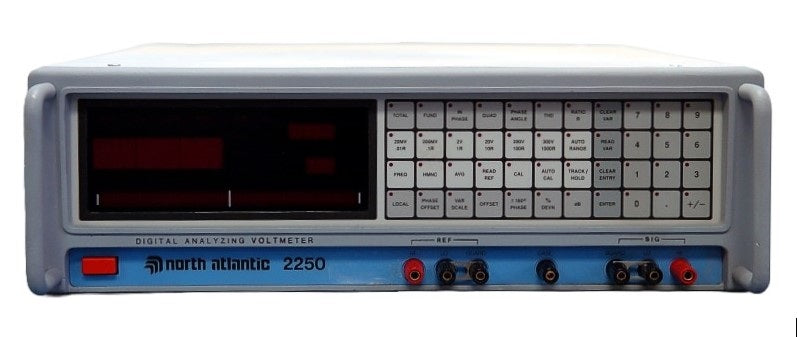

2250 North Atlantic Phase Angle Meter Used

2250 North Atlantic Phase Angle Meter Used

$5,995
$5,995 $0
In Stock
Shipping calculated at checkout.
Calibrations
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Voltage ranges are from: 20mV to 500V full scale in 6 ranges
  • Phase angle measurement from: +0.0° to +359.99° phase lead with a 0.01° resolution
  • High accuracy
  • Half the size and weight of existing designs
  • High resolution touch-screen
  • Up to 80 dB harmonic rejection
  • Fast settling time, fully programmable
  • Ethernet, USB, & IEEE-488 ports
  • LVDT/RVDT measurement capability
  • Independent front and rear panel connections
Share on
View full details
More Details
Specifications
Datasheets

Applications:

  • Automatic test equipment (ATE)
  • Transformer ratio & phase tests
  • Amplifier gain & phase
  • Phase-sensitive null detection
  • Network transfer function analysis
  • Input/output impedance testing
  • Wide-band, high sensitivity voltage measurements
  • Attenuator linearity testing
  • Harmonic analysis
  • Accelerometer testing
  • Phase angle measurements
  • Synchro/Resolver transducer testing
  • LVDT/RVDT testing
  • Filter testing: Insertion loss, Phase shift measurement of power factors,  Complex impedance phasing of servo motors & servos

The North Atlantic 2250 Phase Angle Voltmeter employs a  16-bit microprocessor-based design using Fast-Fourier Transform techniques that combine many of the capabilities of today’s network/waveform analyzers in a digital analyzing voltmeter configuration.

Designed for the Synchro/Resolver and LVDT/RVDT marketplace, this instrument accurately makes measurements of phase angle, in-phase, quadrature, fundamental, and total, as well as impedance, power, and harmonics. Isolated inputs allow null, ratio, and gain measurements of key parameters. A reference phase offset facilitates bridging measurements. A sensitive null meter is included for precise nulling. The 2250 is ideally suited for defense, industrial, and commercial applications.

Model No

2250

Condition

Used

Manufacturer

North Atlantic

North Atlantic 2250
