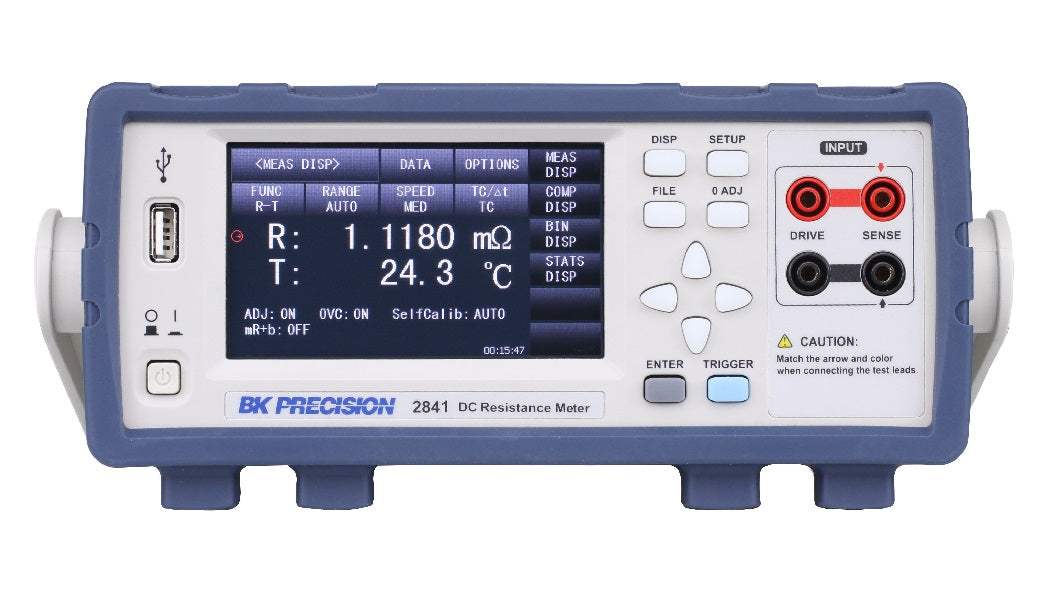

2841 B&K Precision Resistance Meter Used

2841 B&K Precision Resistance Meter Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Display Range: 0.1 μΩ to 100 MΩ
  • Basic Accuracy: 0.01%
  • Measurement Resolution: 0.1 μΩ
  • Displayed Digits: 5 1/2
  • Functions: R, R-T, T, LPR, LPR-T
  • Resistance Measurement Ranges: 11 + Auto
  • Temperature Compensation: √
  • Number of Results Bins: 10
  • 4.3-inch color touch screen
  • 4-wire Kelvin test leads included
  • Temperature measurement with correction
  • Low power resistance mode to protect DUT
  • Manual or auto ranging
  • Adjustable measurement speed for fast readout or better accuracy
  • Fast measurement speed up to 20 ms/reading to increase manufacturing throughput
  • Offset voltage compensation (OVC)
  • Cable compensation (0 ADJ)
  • BIN comparator function to sort components in up to 10 bin locations
  • Bin-sorting with statistical measurement
  • Store/recall 30 instrument settings
  • Screen capture to USB drive
  • Selectable power line filter
  • Trigger delay
  • Handler interface for easy integration with a component handler
  • Standard RS232, USB (USBTMC and virtual COM), and LAN interfaces
Share on
View full details
More Details
Specifications
Datasheets

Included Accessories

  • AC power cord, user manual, Kelvin test leads (TLDK1), temperature probe TPTC2 (model 2841 only), test report and certificate of calibration

Applications

  • Component testing: Measure the resistance of motor and transformer windings, relay and switch contacts, and other conductive materials and components. 4-wire Kelvin test leads included with both models.
  • Circuit board testing: The resistance meters’ high accuracy make them suitable for measuring trace resistances and finding shorts on PCBs.

The 2841 DC resistance meter features high accuracy and resolution measurements in the milliohm range. Both meters are ideally suited for measuring contact resistance of relays, switches, and PCB traces, typically outside the resistance range of multimeters. The vivid 4.3-inch TFT LCD color touch screen and keypad provide intuitive operation.

The 2841 model adds extended range, accuracy, temperature measurement and functions. Measure low resistivity materials with offset voltage compensation to reduce the influence of thermal EMF. Cable error detection displays a message when one of the terminals is open, which helps identify defective test leads or poor contact that can cause unreliable measurements.

The 2841 includes two temperature compensation functions: correction (TC) and conversion. The TC function corrects for ambient temperature changes that cause different resistance measurements of the same component. The temperature conversion function can be used to evaluate a coil’s resistance before and after operation to calculate a temperature change. These additional features make the 2841 ideal for evaluating coils, motor windings, transformers, actuators and conductive materials.

Both meters feature low power resistance testing (LPR) modes and variable measurement speeds that are suited for a wide range of applications. The handler interface with high-speed measurement capabilities enable the 2840 Series to evaluate a large quantity of components and be integrated into an automated test system.

Intuitive user interface

The touch screen and keys both provide a convenient interface for setting parameters quickly and precisely. Both models also support one touch zoom to enhance the readability of displayed measurements.

Bin sorting function

Quickly sort components using the 10 bins of the 2841. The results can be displayed on the screen or output via the handler interface. High and low limits for each bin can be set up in absolute or tolerance mode.

Temperature correction

The 2841 can compensate for temperature changes with a component’s known temperature coefficient of resistivity. This allows for increased comparison accuracy between components that are measured at different temperatures.

Remote PC control

Integrate your DC resistance meter into an automated test system and control it from a PC using commands via the RS232 or USB interface. The 2841 is LAN enabled with a web browser interface that allows users to conveniently configure, control, or monitor basic settings.

LPR (Lower Power Resistance) measurement

In standard resistance measurement mode (LPR OFF), the large drive current (1 A max.) may damage sensitive components or circuits. LPR mode protects the DUT by limiting the maximum power being applied.

Offset voltage compensation (OVC)

OVC switches the polarity and averages the forward and reverse polarity readings. This enables accurate measurements by minimizing the adverse effects of thermal EMFs or small biases in a circuit (e.g., from a capacitor’s dielectric absorption when measuring a PCB trace).

Model No

2841

Condition

Used

Manufacturer

B&K Precision

BK_Precision_2840_Series
