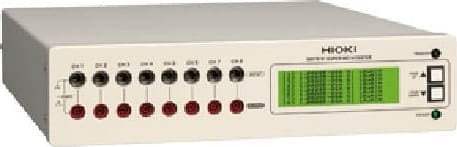

SM7810-20 Hioki Meter New

Shipping calculated at checkout.

Product variants

Request a Quote

Features:

Super Megohm Meter (220V) AC power supply. 8-channel 1x10^2 to 1x10^15 Digital Super Megohmmeter for Testing MLCC Leakage Current.

Super Megohm Meter (220V) AC power supply
Test the leakage current of MLCCs at the fastest speed of 6.8ms simultaneously over 8 channels
Conduct high-speed leakage current testing of large-capacity MLCCs in the high current range (1mA)
Improve testing reliability using the contact check function
Build a flexible system by making best use of the individual settings of each channel

View full details

More Details

Specifications

Datasheets

The Super MΩ HiTESTER SM7810 is a super megohm meter that supports the leakage current of MLCC (Multi-Layer Ceramic Capacitors) at a rapid speed of 6.8ms across 8 channels simultaneously in production lines. With the dedicated POWER SOURCE UNIT SM7860 for multi-channel systems, you can expand your testing capabilities by applying voltage to a maximum of 32 channels using the 8-channel or 16-channel dual-line voltage setting function. An inspection test system combining the SM7810 and SM7860 is ideal for integration into automated measurement systems to build the fastest and most optimized MLCC leakage current inspection line possible.

Model No

SM7810-20

Condition

New

Manufacturer

Hioki

Hioki SM7810 SM7860
