• SDL470 Extech Meter
1 1
New
Earn Loyalty with Rewards
Compare

SDL470 Extech Meter New

SDL470 Extech Meter New

$863.37
$863.37 $969
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • UVA probe captures long-wave 365nm UV irradiance measurements under a UVA (black light) source
  • UVC probe captures short-wave 254nm UV irradiance measurements under a UVC light source
  • Cosine correction filter and metal housing
  • Datalogging feature records readings with date and time stamp on an SD card (included) in Excel® format
  • Offset adjustment used for zero function or to make relative measurements
  • Adjustable data sampling rate from 1 to 3600 seconds
  • Stores 99 readings manually
  • Type K/J Thermocouple input for temperature measurements (probes sold separately)
  • Large backlit LCD display
  • Record/Recall MIN, MAX readings, Data Hold plus Auto power off with disable function
  • Complete with built-in tilt stand, SD memory card, UVA light sensor with protective cover, UVC light sensor, hard case, Universal AC adaptor, and 6 x AA batteries
View full details
More Details
Specifications
Datasheets

Accessories:

  • UA100-240 - Universal Power Adaptor
  • TP870 - Bead Wire Type K Temperature Probe (-40 to 482°F)
  • TP875 - Bead Wire Type K Temperature Probe (-58 to 1000°F)

Specifications:

  • UVA Range: 2mW/cm², 20mW/cm²
  • UVC Range: 2mW/cm², 20mW/cm²
  • Frequency Bandwidth: 365nm (UVA); 254nm (UVC)
  • Type K Temperature: -148 to 2372°F (-100 to 1300°C)
  • Type J Temperature: -148 to 2192°F (-100 to 1200°C)
  • Memory: Manual: 99 data readings; Includes SD memory card for datalogging

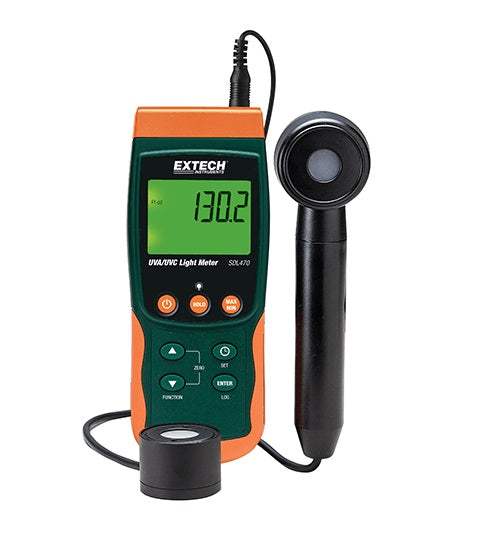

The SDL470 is a UVA/UVC Light Meter and Data logger. The SDL470 can measure both long wave and short wave UV irradiance under UVA and UVC light sources respectively. This meter features a cosine correction filter, data logging to Excel format, offset adjustment for relative measurements, type K/J thermocouple input for temperature measurements (probe sold separately), record/recall modes, min and max readings, data hold plus auto power off with disable function. This product comes with a built-in tilt stand, SD memory card, UVA light sensor with protective cover, UVC light sensor, hard case, universal AC adaptor, and 6 x AA batteries.

Model No

SDL470

Condition

New

Manufacturer

Extech

Extech_SDL470_TP875
