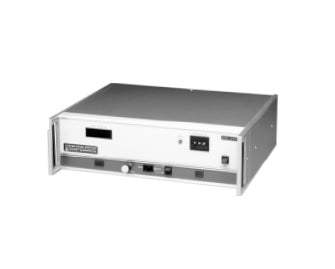

MT7370 Maury Microwave Meter Used

MT7370 Maury Microwave Meter Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Adaptable to Specific Applications
  • Operational Simplicity
  • Cost effectove Noise Figure Measurements
  • Includes GPIB (IEEE-488) Interface
  • Bandwidth: 10% of the center frequency (nominal)
  • Sensitivity: -70 dBm (minimum)
  • Input Signal Level Range: 40 dB (minimum)
  • Input Impedance: 50 ohm (nominal)
  • Noise Figure Display Range: 0 to 19.9 dB
  • Noise Figure Instrumentation Uncertainty: ±0.25 dB, 0 to 6 dB; ±0.5 dB, 6 to 12 dB; ±1.0 dB, 12 to 23 dB; ±2.0 dB, 23 to 29.9 dB
  • ENR Calibration Range: 6 to 15.9 dB in 0.1 dB steps
Share on
View full details
More Details
Specifications
Options
Datasheets

The MT7300 series are fixed frequency units designed to operate at one of seven common intermediate frequencies designated by a model number suffix as shown below:

  • A 10.7 MHz
  • B 21.4 MHz
  • C 30.0 MHz
  • D 36.0 MHz
  • E 45.0 MHz
  • F 60.0 MHz
  • G 70.0 MHz

The Maury MT7300 series of System Noise Monitors (SNM) are single frequency noise meters designed to meet the needs of field and production applications that demand simplicity of operation and economy in the instrumentation.

The SNM offer simplified, uncluttered front panels with only those controls required for the basic measurement and calibration functions; an indicator that tells the operator when there is sufficient signal level for a valid measurement, and a thumbwheel switch that sets the calibration of the unit for the noise generator in use (ENR). All connections are via the rear panel. These units are available with either analog or digital noise figure indicators and in either bench or rack mountable configuration.

Model No

MT7370

Condition

Used

Manufacturer

Maury Microwave

E

45 MHz Frequency

Maury Microwave MT7310 MT7320 MT7360 MT7370
