16502 Chroma Meter New

16502 Chroma Meter New

Shipping calculated at checkout.
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Basic accuracy: 0.05%
  • Pulsed test current output mode is used to reduce thermal EMFs affection on milliohm measurement
  • DC test current output mode is used to fasten measurement speed for inductive DUT
  • Dry-circuit test current output mode (limited Max. 20mV) is used to measure such contact resistances where the maximum open-circuit voltage must be limited to 50mV
  • Temperature correction (TC function) regardless of material or temperature
  • Useful temperature conversion function for motor/ coil evaluation
  • 4 channels R scan with balance check function for fan motor (combined with A165017 option)
  • 0.001mΩ~1.9999MΩ wide measurement range with 4½ digits resolution
  • Standard RS-232 interface
  • Optional GPIB & Handler interface
  • Bin-sorting function
  • Comparator and pass/fail alarming beeper function
  • Large LCD display (240 x 64 dot-matrix)
  • Friendly user interface
  • LabView® Driver
View full details
More Details
Specifications
Datasheets

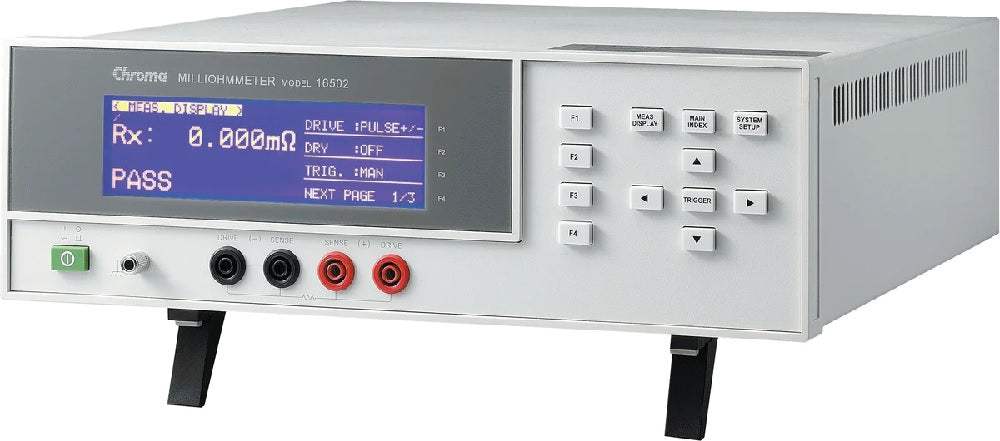

The Chroma 16502 Milliohm Meter is Chroma's newest digital Milliohm Meter. With a basic accurac y of 0.05% the instrument offers a 0.001mΩ ~1.9999MΩ wide measurement range. It provides measurement range with 4 1/2 digits resolution. The fast measurement time is 65 ms. It suits component evaluation on production line.

Model No

16502

Condition

New

Manufacturer

Chroma

Chroma 16502 2
