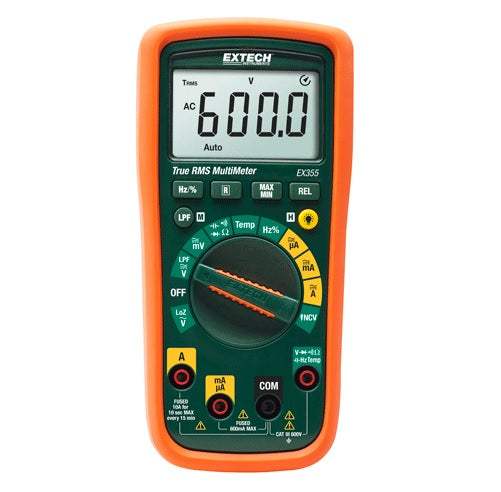

• EX355-NIST Extech Multimeter
1 1
New
Earn Loyalty with Rewards
Compare

EX355-NIST Extech Multimeter New

EX355-NIST Extech Multimeter New

$266.99
$266.99 $266.99
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • True RMS for accurate AC measurements
  • 6000 count backlit LCD display
  • Low Impedance (LoZ) prevents false reading caused by ghost voltages
  • Low Pass Filter (LPF) for accurate measurements of variable frequency drive signals
  • Built-in non-contact voltage detector (NCV) with LED indicator
  • Functions include: NCV, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Type-K Temperature, Duty Cycle, Diode Test, Continuity
  • Data Hold, Min/Max/Max-Min, Auto Power Off
  • Relative Mode for Capacitance Zero and offset adjustment
  • Complete with test leads, two AAA batteries and general purpose bead wire temperature probe
View full details
More Details
Specifications
Datasheets

Accessories:

  • TL803 - General Purpose Test Leads
  • TL805 - Double Injected Test Leads
  • TL809 - Electronic Test Lead Kit
  • TL810 - Electrical Test Lead Kit
  • TL831 - Master Electrical Test Lead Kit
  • TL808-KIT - Professional Test Lead Kit
  • TL900 - SafeSense™ CAT IV Fused Test Leads
  • TL833 - Industrial Test Lead Set
  • TL841 - Test Lead Kit
  • TL806 - Double Insulated Alligator Clips
  • TL807 - Insulated Alligator Clips
  • TL807C - Insulated Alligator Clips
  • TP873 - Bead Wire Type K Temperature Probe (-22 to 572°F)
  • CA250 - 400A AC/DC Clamp-on Adaptor + NCV
  • TL708 - Heavy Duty Large Alligator Clips
  • TL709 - Medium Alligator Clips
  • TL740 - Industrial Plunger Style Test Clip Set
  • TL741 - Heavy Duty Plunger Style Hook Clips
  • TL742 - Heavy Duty Plunger Style Pincer Grip Set
  • TL743 - Slim Reach Test Probe Set
  • TL744 - Flat Blade Test Probe Set
  • TL747 - Electronic Sharp Test Probe Set
  • TL748 - Spring Loaded Hook Tip Probes
  • TL726 - Double Molded Silicone Test Lead Set
  • CA500 - Medium Carrying Case

Specifications:

  • Display counts: 6000
  • Basic DCV Accuracy: ±0.5%
  • NCV Detector: Yes
  • DC/AC Voltage: 0.01mV to 600V
  • DC/AC Current: 0.1µA to 10.00A
  • Resistance: 0.1Ω to 60.00MΩ
  • Capacitance: 1pF to 60.00mF
  • Frequency: 0.001Hz to 10MHz
  • Temperature (Type K): -40 to 1832°F (-40 to 1000°C)
  • Duty Cycle: 0.1 to 99.9%
  • Diode Test: 3.2V
  • Continuity: Audible
  • Dimensions/ Weight: 6.7x3.2x1.9" (175x81x48.5mm)/ 13.1oz (370g)

The EX355 is a professional DMM loaded with advanced features and functions. Low Impedance (LoZ) mode eliminates false readings caused by ghost voltages. Low Pass Filter (LPF)attenuates high frequencies to reduce noise for accurate readings. True RMS provides accurate readings when measuring distorted or noisy waveforms. Built-in Non-Contact AC Voltage Detector quickly checks for the presence of AC Voltage before testing. Features a 6000 count LCD display, data hold, min-max, relative mode, capacitance zero, auto power off, continuity and diode test. This meter will measure AC/DC voltage to 600 V and AC/DC current to 10 amps. Complete with test leads, general purpose bead wire temperature probe, manual and two AA batteries.

Model No

EX355-NIST

Condition

New

Manufacturer

Extech

Ac voltage

600 V

Dc voltage

600 V

Resolution

3.75

Type

Handheld

Extech_EX350_Series
Compare All Models
