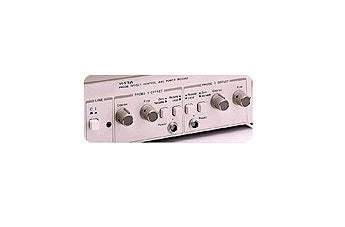

• 1143A Agilent Keysight HP Modulation Meter
1 1
Used
Compare
lab tested

1143A Agilent Modulation Meter Used

1143A Agilent Modulation Meter Used

$450
$450 $0
In Stock
Shipping calculated at checkout.
Calibrations
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Select option

Features

  • Keysight 1143A independently powers the Keysight 54701A
  • Programmable offset
  • ±50 V offset
  • Number of independently operated probes: 2
  • Positive power output: +17.3 V ±150 mV
  • Negative power output: -17.3 V ±150 mV
  • Maximum current capability (both +17.3 V and -17.3 V supply): 300 mA
  • Offset current: Variable from zero to ±5 mA
  • Operating temperature: 0 to 55°C
  • Operating humitity: 95% relative humidity at 40°C
  • Net Weight: 1.5 kg (3.4 lbs.)
  • Shipping Weight: 2.4 kg (5.4 lbs)
  • Power Requirements: 90 to 132/198 to 264 Vac, 47 to 440 Hz, 40 VA max
  • Dimensions: 211 mm (W) x 173 mm (D) x 78 mm (H) (8.3 x 6.8 x 3.1 inches)
Share on
View full details
More Details
Specifications

The Keysight 1143A provides power and independent offset control for two Keysight 54700-series probes. The probe's offset can be controlled via a 9-pin, D-subminiature connector on the rear panel of the Keysight 1143A. Additionally, the ±50 V offset capability extends the dynamic range of the probe measurement system beyond that of many test and measurement instruments.

Model No

1143A

Condition

Used

Manufacturer

Agilent
