Features:

  • Measures Inductance, Capacitance, and Resistance with secondary parameter Q (Quality), D (Dissipation), R (Resistance), P (Phase), ESR (Equivalent Series Resistance)
  • Simultaneous 20,000/2,000 count backlit display of the primary parameter (L, C or R) with the secondary parameter
  • Auto Select measurement function with 1kHz default test frequency
  • Five test frequencies
  • Set Hi/Lo limits using absolute values or percentage limits
  • Relative mode function
  • Parallel or Series equivalent circuit
  • Auto power off, Low battery and overrange indicators
  • Built-in test fixture or use external test leads
  • Open and Short calibration removes unwanted stray impedances from the measurement
  • Complete with test leads and 9V battery
View full details
More Details
Specifications
Datasheets

Accessories:

  • LCR203 - SMD Component Tweezers
  • LCR205 - SMD Component Fixture



Specifications:

  • DF (with C): 0.000 to 1999
  • Q: 0.000 to 1999
  • Phase: ±90°
  • Test Frequency: 100Hz/120Hz/1kHz/10kHz/100kHz
  • Dimensions: 7.6 x 3.5 x 1.6" (193 x 88 x 41mm)
  • Weight: 14.8oz (420g)

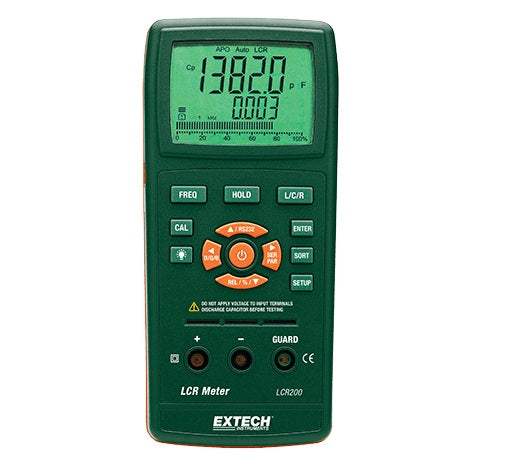

The LCR200 is a passive component LCR meter. Discover the tremendous value with a range of features that help this meter provide the precise measurements you need. See simultaneous 20,000/2,000 count display of the primary parameter on the high contrast backlit display. You can set Hi/Lo limits using absolute values or percentages. Open and Short Zero removes unwanted stray impedances from the measurement. Use the built-in test fixture or external test leads (included). The LCR200 has an Auto Power Off function that can also be disabled and a low battery indicator to alert you when to replace the batteries. Complete with test leads and 9V battery.

Model No

LCR200

Condition

New

Manufacturer

Extech

Frequency

1 kHz
