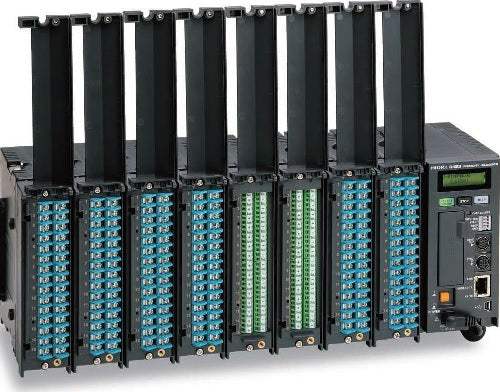

8423 Hioki Data Logger New

8423 Hioki Data Logger New

$2,530
$2,530 $2,530
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

Memory HiLogger - 600-channel Data Logger with 10ms Sampling

  • Up to 600-channels Isolated
  • Data Loggers with PC Networking Support
  • Numerical data logging/recording and trend graph display
  • Completely isolated input channels, No need to worry about potential difference between measurement objects
  • Real-time saving to large capacity memory card
  • Use a large capacity memory card for long-term data recording
  • Data collection to a PC via LAN
  • Data acquisition by FTP client/server functions
  • Send e-mail notification of anomalies by SMTP
  • Monitor and control over the Web using HTTP server functions
View full details
More Details
Specifications
Datasheets

The Hioki 8423 is a data acquisition system capable of measuring and recording multiple channels at high speed. Acquired data can be easily analyzed on a personal computer. This model is ideal for acquiring data for evaluation and testing at development sites. If your evaluation needs require faster data sampling than was available with former HIOKI MEMORY HiLOGGERs, or if you just need more measurement channels, this model has the capabilities you want.

Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance, humidity, rotation, and pulse signals, providing complete isolation within channel sets. The 8423 with optional input modules log data at 10ms speeds across up to 600 simultaneously and is configurable and controllable using a PC.

To acquire data when converting automobile electronics for electric or hybrid vehicles

  • Fastest measurement interval (sampling interval) is 10 ms
  • Acquires up to 600 channels of data with 10 ms sampling interval
  • Insulation withstand voltage between the measurement channels in each module is 200 V (Model 8948)

Model No

8423

Condition

New

Manufacturer

Hioki

Hioki 8423
