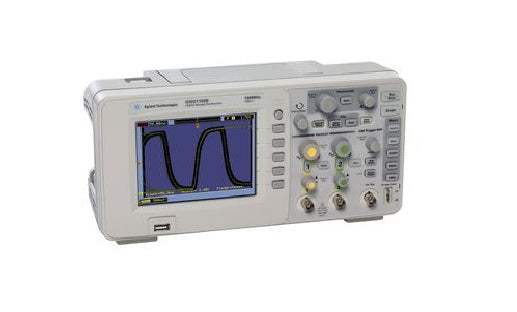

The Agilent DSO1000A/B Series is a line of portable benchtop oscilloscopes engineered to deliver the signal-capture performance and feature depth associated with larger instruments in a compact, low-cost, lightweight package. Weighing less than seven pounds with a small footprint, the series combines powerful signal capture and display, advanced measurement capability, and a streamlined operating workflow across both its A and B model families.
An oscilloscope captures voltage waveforms over time and displays them on screen, letting an engineer see a signal's amplitude, frequency, timing, and shape — making it one of the most universal diagnostic instruments on an electronics bench. The DSO1000A/B Series is positioned for product design work in R&D, for teaching basic scientific and engineering measurements at lab stations in schools and universities, and for testing in manufacturing and service environments, where standard go/no-go mask testing supports fast pass/fail decisions.
ValueTronics stocks and holds its own test-and-measurement inventory in a 20,000-square-foot secure warehouse at 1675 Cambridge Drive in Elgin, Illinois. Every used unit is inspected and functionally verified in-house by our technicians before it ships, while new units ship factory-sealed exactly as received from the manufacturer. Holding inventory directly lets us match the right instrument and condition to your application and get it out the door quickly.
Agilent Technologies was established in 1999 as a spin-off of Hewlett-Packard, taking on HP's test-and-measurement business. In 2014, Agilent's electronic measurement business was separated again and rebranded as Keysight Technologies.
The DSO1000A/B Series is organized into two-channel and four-channel models spanning a range of bandwidths. The two-channel lineup runs from the 50 MHz DSO1052B through the 70 MHz DSO1072B, 100 MHz DSO1102B, 150 MHz DSO1152B, and 200 MHz DSO1022A, while the four-channel lineup comprises the 60 MHz DSO1004A, 100 MHz DSO1014A, and 200 MHz DSO1024A.
Beyond bandwidth and channel count, the family divides into A and B models that differ in sample rate, acquisition memory, and I/O. A models provide up to 2 GSa/s and 20 kpts of memory, while B models provide up to 1 GSa/s and 16 kpts, with both sharing the same 5.7-inch display, 23-measurement set, math and FFT functions, mask testing, and eleven-language interface.
Each pre-owned model in the series below is listed on its own dedicated product page with condition-matched pricing, so you can select the exact bandwidth, channel count, and model variant your application requires and see the price for that specific configuration.
The clearest differences across the family are bandwidth and channel count: bandwidth ranges from 50 MHz to 200 MHz, and models are configured with either two or four input channels, as shown in the comparison table below. Time-base range also tracks the model — the 200 MHz models reach 1 ns/div, while lower-bandwidth models start at 2 ns/div or 5 ns/div.
The A/B suffix marks a second axis of difference. A models offer higher real-time sample rate (up to 2 GSa/s) and deeper memory (up to 20 kpts), add a rear-panel USB host port, support USBTMC remote PC control, and include pattern triggering and the Ext/5 trigger source; B models provide up to 1 GSa/s and 16 kpts with a front-panel USB host port, without USBTMC remote control or pattern triggering. Consult the comparison table for the per-model figures.
| Model | Bandwidth | Channels | Sample Rate |
|---|---|---|---|
| DSO1152B | 150 MHz | 2 | 1 GSa/s |
| DSO1052B | 50 MHz | 2 | 1 GSa/s |
| DSO1072B | 70 MHz | 2 | 1 GSa/s |
| DSO1102B | 100 MHz | 2 | 1 GSa/s |
Additional differences in specifications beyond the few shown above are not listed here — see each model's full specifications below.
| Specification | Value |
|---|---|
| Performance Characteristics | |
| Bandwidth (-3 dB) | DSO1052B: DC to 50 MHz; DSO1002A, DSO1004A: DC to 60 MHz; DSO1072B: DC to 70 MHz; DSO1102B, DSO1012A, DSO1014A: DC to 100 MHz; DSO1152B: DC to 150 MHz; DSO1022A, DSO1024A: DC to 200 MHz |
| Real-time sample rate | 2 GSa/sec half channel interleaved, 1 GSa/sec all channels (A models); 1 GSa/sec half channel interleaved, 500 MSa/sec all channel (B models) |
| Memory depth | 20 kpts half channel interleaved, 10 kpts all channels (A models); 16 kpts half channel interleaved, 8 kpts all channels (B models) |
| Channels | DSO1052B, DSO1002A, DSO1072B, DSO1102B, DSO1012A, DSO1152B, DSO1022A: 2 channels; DSO1004A, DSO1014A, DSO1024A: 4 channels |
| Vertical resolution | 8 bits |
| Vertical sensitivity (range) | 2 mV/div to 10 V/div |
| DC gain accuracy | 2 mV/div to 5 mV/div: ± 4.0% full scale (A and B models); 10 mV/div to 5 V/div: ± 3.0% full scale (A models only); 10 mV/div to 10 V/div: ± 3.0% full scale (B models only) |
| Vertical zoom | Vertical expand |
| Maximum input voltage | CAT I 300 Vrms, 400 Vpk; transient overvoltage 1.6 kVpk |
| Dynamic range | +6 divisions from center screen |
| Time-base range | DSO1022A, DSO1024A: 1 nsec/div to 50 sec/div; DSO1012A, DSO1014A, DSO1102B: 2 nsec/div to 50 sec/div; DSO1002A, DSO1004A, DSO1052B, DSO1072B: 5 nsec/div to 50 sec/div |
| Selectable BW limit | 20 MHz |
| Horizontal modes | Main (Y-T), XY, delayed zoom and roll |
| Input coupling | DC, AC and ground |
| Input impedance | 1 MΩ ±1% in parallel with 18 pF ± 3 pF (A models); 1 MΩ ±2% in parallel with 15 pF ± 3 pF (B models) |
| Time scale accuracy | ± 50 ppm from 0 °C to 30 °C (A models); ± 50 ppm + 2 ppm per °C from 30 °C to 45 °C + 5 ppm × (years since manufacture) (A models); ± 50 ppm over 1 ms (B models only) |
| Acquisition Modes | |
| Normal | Displays sampled data directly to the screen in real time |
| Averaging | Selectable from 2, 4, 8, 16, 32, 64, 128 or 256 |
| Sequence | Selectable 1 to 1,000 acquisition frames can be recorded, played back and stored in the scope memory or external USB memory |
| Peak detect | Captures high-frequency glitches as narrow as 10 nsec (A models) and 20 nsec (B models) when viewing signals at slow sweep speeds |
| Roll | Waveform display rolls from right to left. Minimum horizontal scale setting is 50 msec/div. |
| Interpolation | Sin (x)/x |
| Trigger coupling | AC, DC, LF reject, HF reject |
| Trigger Modes | |
| Force | Triggers immediately when front panel button is pressed |
| Edge | Triggers on the positive and/or negative slope on any channel |
| Video | Triggers on NTSC, PAL or SECAM video signals |
| Pulse width | Triggers on pulse width greater than, equal to or less than a specific time limit, ranging from 20 nsec to 10 sec (A models) and 50 ns to 10 sec (B models) |
| Alternate | Triggers on two non-synchronized active channels |
| Trigger source | Ch 1, 2, Ext, Ext/5, AC Line (edge only) (2 channel A models); Ch 1, 2, Ext, AC Line (edge only) (B models); Ch 1, 2, 3, 4, Ext, Ext/5, AC Line (edge only) (4-channel A models) |
| Trigger sensitivity | ≥5 mV/div: 1 div from DC to 10 MHz, 1.5 div from 10 MHz to full bandwidth; <5 mV/div: 1 div from DC to 10 MHz, 1.5 div from 10 MHz to 20 MHz |
| Measurements | |
| Cursor measurement | Manual, track waveform or automatic measurement selections. Manual and track waveform selections provide readout of Horizontal (X, ΔX) and Vertical (Y, ΔY) |
| Auto measurement - Voltage | Maximum, minimum, peak-to-peak, top, base, amplitude, average, RMS, overshoot, preshoot |
| Auto measurement - Time | Period, frequency, rise time, fall time, + width, - width, +duty cycle, -duty cycle, delay A-->B (rising edge), delay A-->B (falling edge), phase A-->B (rising edge) and phase A-->B (falling edge) |
| Counter | Integrated 6-digit frequency counter on any channel. Counts up to the scope's bandwidth |
| Display all measurements | Mode to display all single-channel automatic measurements simultaneously on the display |
| Math functions | A+B, A-B, AxB, FFT. Source channel selection for A and B can be any combination of oscilloscope channels 1 and 2 (or 3 and 4 on 4 channel A models) |
| AutoScale | Finds and displays all active channels, sets edge trigger modes on highest numbered channels, sets vertical sensitivity on channels, time base to display ~2 periods. Requires minimum voltage >20 mVpp, 1% duty cycle and minimum frequency >50 Hz |
| Display | |
| Display | 5.7 inch diagonal color QVGA TFT LCD display with 300 cd/m2 backlight intensity |
| Display persistence | OFF, Infinite |
| Display types | Dots, Vectors |
| Waveform update rate | 400 waveforms/sec (A models); 200 wfm/sec (B models) |
| Save/Recall internal | 10 setups and 10 waveforms can be saved and recalled using internal non-volatile memory locations. 1 reference waveform can be saved and recalled using an internal volatile memory location for visual comparisons. |
| Save/Recall external | Setups: STP saved and recalled (Note: setups not transferable between A and B models); Waveforms: WFM saved and recalled, CSV saved; Reference waveforms: REF saved and recalled for visual comparisons; Images: 8-bit BMP, 24-bit BMP, PNG saved |
| I/O | |
| Standard ports | USB 2.0-compliant host port on front panel (A and B models) and rear panel (A models only) compatible with USB flash drives. USB 2.0 device port for PictBridge compatible printing (A and B models) and USBTMC remote PC control (A models only) |
| Max transfer rate | USB 2.0 full-speed up to 12 Mb/sec |
| USB flash drive compatibility | Most FAT formatted <2 GB or FAT32 formatted <32 GB flash drives |
| Printer compatibility | PictBridge-compliant printers via USB device port |
| General Characteristics | |
| Physical size | 12.78 inches W x 6.21 inches H x 5.08 inches D (32.46 cm W x 15.78 cm H x 12.92 cm D) (A models); 11.9 inches W x 6.06 inches H x 5.23 inches D (30.3 cm W x 15.4 cm H x 13.3 cm D) (B models) |
| Weight | Net: 3.03 kgs (6.68 lbs) Shipping: 4.87 kgs (10.74 lbs) (A models); Net: 2.4 kgs (5.3 lbs) Shipping: 3.87 kgs (8.3 lbs) (B models) |
| Probe comp output | Frequency ~1 kHz; Amplitude ~3 V |
| Scope lock | Secure with a Kensington lock or looped cable through notch built into chassis |
| Power Requirements | |
| Line range | 100-240 VAC, 50/60 Hz ± 10% |
Important: Maximum input voltage: CAT I 300 Vrms, 400 Vpk, with transient overvoltage rated to 1.6 kVpk.
Important: Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ±10 °C from firmware calibration temperature.
Important: Bandwidth is limited to 20 MHz when the vertical scale is set to < 5 mV.
Important: Setups are not transferable between A and B models.
Important: Remote programming over the built-in USB device port (USBTMC PC control) is only available on the "A" models. Pattern triggering is also "A" models only.
Important: Peak detect captures high-frequency glitches as narrow as 10 nsec (A models) and 20 nsec (B models).
Recommended pairing: the N2862B (150 MHz) and N2863B (300 MHz) 10:1 passive probes are the standard companions by bandwidth tier, while the N2791A 700 V and N2771B 30 kV probes extend the series to differential and high-voltage measurements.
This pre-owned unit is inspected and functionally verified in-house before it ships and is backed by our pre-owned warranty. To confirm its exact condition, firmware revision, installed options, or included accessories for your application before ordering, contact our Test Architects.
ValueTronics supplies both new and used test and measurement equipment. New units ship factory-sealed, exactly as received from the manufacturer; every used unit is inspected and functionally verified in-house at our 20,000 sq ft secure facility in Elgin, Illinois before it ships. Our Test Architects can help you select the condition, calibration, and configuration that fit your application.
Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
Model No
Agilent
Condition
Pre-Owned
Manufacturer
Keysight Technologies
Osc_ch
2
Osc_freq
150 MHz
Osc_r
1 MΩ ± 2% in parallel with 15 pF ± 3 pF
Osc_sampl
1 GSa/s
