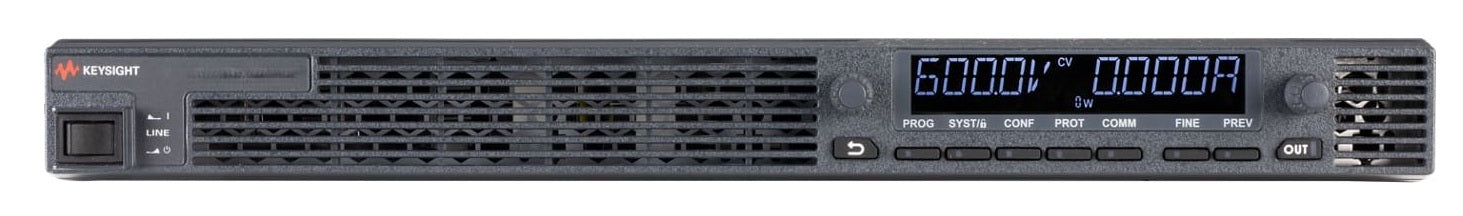

DP5744AL Keysight DC Power Supply New

Name: DP5744AL Keysight DC Power Supply New
Brand: Keysight
Price: 10576.0 USD
Availability: InStock

$10,576

In Stock

Shipping calculated at checkout.

Product variants

Estimated Delivery in

5 - 7

business days (based on availability)

Request a Quote To Get A EDU Discount

Features:

Single channel DC power supply
Maximum voltage: 40V
Maximum current: 85A
Maximum power: 3400W
Full rack width, 1U height

View full details

More Details

Specifications

Datasheets

Single Channel DC Power Supply (40V / 85A / 3.4kW); Full Rack Width, 1U Height

The DP5700 Series DC power supplies are compact and secure, designed to maximize space efficiency in lab and production environments. The 1.5kW models are half-rack width, while the 3.4kW models are full-rack width, both only 1U high.

A removable SD memory supports sensitive security applications, enabling safe movement of test equipment between confidential spaces. Flexible system scaling is possible by connecting up to four units in parallel to increase current or two in series to increase voltage. Validate complex power devices faster, in less space, with no compromise on performance.

Intuitive front-panel operation

The DP5700 Series offers quick and intuitive operation through rotary knobs and buttons. Frontpanel controls support coarse and fine adjustments to voltage, current, protection settings, and power-on states (state 0). Voltage and current are displayed simultaneously, while the LED indicators show the operating status and modes. The controls can be locked to prevent accidental parameter changes.

Simplify system connections

The DP5700 Series power supplies include standard GPIB, LAN, and USB 2.0 interfaces, providing flexibility in I/O selection across test systems. The series is fully compliant with the LXI Class C specification.

Removable SD card option (part number DP5705A)

All DP5700 models include a removable SD card option for secure data handling in classified environments. This option supports equipment sanitization and enables detailed record-keeping of cleaning and sanitization processes, including the methods and materials used, to maintain a clear audit trail and ensure accountability.

Analog programming and monitoring

Voltage and current can be programmed from zero to full scale using either an analog voltage of 0 - 5V / 0 - 10V or a resistance of 0 - 5 kΩ / 0 - 10 kΩ. This capability also enables monitoring of voltage and current signals.

Built-in arbitrary generator

The integrated arbitrary generator enables the creation of complex voltage or current waveforms that replicate real-world operating environments. Users can apply customized waveforms to simulate power fluctuations, transient events, or other dynamic scenarios, allowing comprehensive device performance characterization.

The arbitrary generator can be synchronized with other test instruments to support coordinated testing setups, making it ideal for evaluating system-level behavior. Additionally, it can reproduce dynamic load conditions often encountered in real applications, ensuring devices are tested under realistic and demanding circumstances.

Adjustable slew control

The DP5700 Series offers adjustable slew rate control to manage the rate of voltage change during operation. By fine-tuning the slew rate, users can minimize voltage overshoot and spikes, ensuring smooth transitions and stable power delivery.

Slew control enhances the power supply’s ability to handle sudden load changes, improving load transient response and overall power delivery efficiency. This level of control is especially valuable when testing sensitive devices that require carefully managed power ramp-up or ramp-down behavior.

Model No

DP5744AL

Current

85 A

Voltage

40 V

Power

3.4 kW
