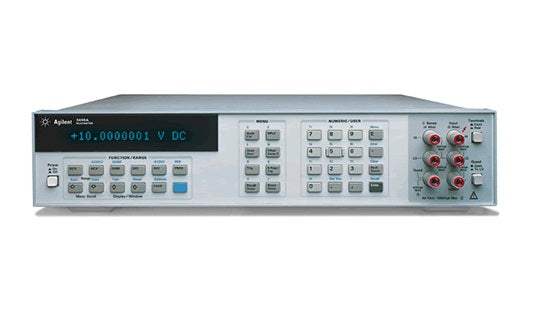

The Keysight 3458A Multimeter is a high-performance 8.5-digit system multimeter engineered to deliver both high speed and high accuracy in a single instrument. Originally introduced under the Hewlett-Packard banner and carried forward through Agilent into the current Keysight lineup, the 3458A has long served as a reference-class bench and system DMM for production test, R&D, and calibration laboratory environments. The datasheet positions it as a multimeter that shatters performance barriers of speed and accuracy, combining seven measurement functions with digitizing capability in one chassis.
Per the datasheet, the 3458A is applied to test system throughput acceleration, calibration laboratory precision work, and high-resolution waveform digitizing. The instrument is positioned for production test floors where measurement speed and tight test margins drive yield, for calibration labs where 0.1 ppm transfer accuracy and low internal noise are required, and for engineering benches that need digitizing of repetitive or single-shot waveforms alongside conventional DMM measurements. Typical work described includes transfer measurements against intrinsic standards, automated characterization sweeps under GPIB control, and stand-alone measurement sequences executed from non-volatile program memory.
ValueTronics International has been a trusted source for new and pre-owned test and measurement equipment since 1992. Every instrument in our inventory is stored and processed in our 20,000 square foot secure warehouse at 1675 Cambridge Drive, Elgin, Illinois, where our in-house technicians perform the receiving, inspection, and functional verification work that distinguishes a professionally graded instrument from an unverified marketplace listing. When you order a 3458A from ValueTronics, you are working with a vendor that has the instrument in physical inventory, has tested it, and stands behind it — not a drop-shipper or pass-through broker.
The 3458A originated as a Hewlett-Packard product. In 1999, HP spun out its test and measurement business as Agilent Technologies, and in 2014 Agilent transferred its electronic measurement division to Keysight Technologies. Instruments built under the HP and Agilent labels share the same 3458A model designation and full support continuity through Keysight today.
| Specification | Value |
|---|---|
| DC Voltage | |
| Ranges | 100 mV, 1 V, 10 V, 100 V, 1000 V (5 ranges) |
| Maximum Resolution | 10 nV (100 mV and 1 V ranges) |
| Input Impedance | >10 GΩ (100 mV, 1 V, 10 V); 10 MΩ ±1% (100 V, 1000 V) |
| 24 Hour Accuracy (10 V range) | 0.5 ppm of reading + 0.05 ppm of range |
| 90 Day Accuracy (10 V range) | 4.1 ppm + 0.05 ppm |
| 1 Year Accuracy (10 V range) | 8 (4) ppm + 0.05 ppm |
| 2 Year Accuracy (10 V range) | 14 (10) ppm + 0.05 ppm |
| Maximum Sensitivity | 10 nV |
| Resistance (2-wire and 4-wire) | |
| Ranges | 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ, 100 MΩ, 1 GΩ (9 ranges) |
| Maximum Resolution | 10 µΩ (10 Ω range) |
| 24 Hour Accuracy (1 kΩ range) | 2 ppm + 0.2 ppm |
| Offset Compensation | Available on 10 Ω to 100 kΩ ranges |
| DC Current | |
| Ranges | 100 nA, 1 µA, 10 µA, 100 µA, 1 mA, 10 mA, 100 mA, 1 A (8 ranges) |
| Maximum Resolution | 1 pA |
| 24 Hour Accuracy (1 mA range) | 10 ppm + 4 ppm |
| AC Voltage | |
| Ranges | 10 mV, 100 mV, 1 V, 10 V, 100 V, 1000 V (6 ranges) |
| Bandwidth | 1 Hz to 10 MHz |
| Measurement Techniques | Synchronous Sub-sampled (SYNC), Analog (ANA), Random Sampled (RNDM) |
| Best Accuracy (SYNC, 45 Hz to 1 kHz) | 0.01% of reading |
| Maximum Resolution | 10 nV (10 mV, 100 mV ranges) |
| AC Current | |
| Ranges | 100 µA, 1 mA, 10 mA, 100 mA, 1 A (5 ranges) |
| Bandwidth | 10 Hz to 100 kHz |
| 24 Hour Accuracy (1 mA range) | 0.06% + 0.02% |
| Frequency / Period | |
| Frequency Range (Voltage) | 1 Hz to 10 MHz |
| Frequency Range (Current) | 1 Hz to 100 kHz |
| Period Range | 100 ns to 1 sec |
| Best Accuracy | 0.01% of reading (1 Hz to 40 Hz, 1 s – 25 ms gate) |
| Input Signal Range | 700 V rms – 1 mV rms; 1 A rms – 10 µA rms |
| Time Base Accuracy | 10 MHz ±0.01%, 0°C to 55°C |
| Digitizing | |
| Resolution | 16 to 24 bits |
| Sample Rate (Standard DCV) | 0.2 to 100,000 samples/sec |
| Sample Rate (Direct Sampled) | Up to 50,000 samples/sec |
| Sample Rate (Sub-Sampled, effective) | Up to 100 Msamples/sec |
| Bandwidth (DSDC/DSAC/SSDC/SSAC) | 12 MHz |
| Timing Resolution | 10 ns (sub-sampling); 100 ns (direct sampling) |
| Time Jitter | <100 ps rms |
| System Specifications | |
| Max Reading Rate to GPIB (SINT) | 100,000 readings/sec |
| Max Reading Rate to Internal Memory | 100,000 readings/sec |
| Function/Range Changes | 340/sec |
| DCV Autorange Rate | 110/sec |
| Reading Memory (Standard) | 10,240 readings (20 k bytes) |
| Reading Memory (Option 001) | 65,536 readings (+128 k bytes) |
| Non-volatile Memory | 14 k bytes (for subprograms and/or state storage) |
| Interface | IEEE-488.1, IEEE-728, HPML (Multimeter Language) |
| General | |
| Voltage Reference Stability | 8 ppm/year standard (4 ppm/year with Option 002) |
| Operating Environment | 0 to 55 °C |
| Operating Humidity | Up to 95% RH at 40 °C |
| Storage Temperature | −40 to +75 °C |
| Warm-up Time | 4 hours to published specifications |
| Power Requirements | 100/120 V, 220/240 V ±10%; 48-66 Hz, 360-420 Hz auto-sensed; <30 W, <80 VA (peak) |
| Fuse | 1.5 A @ 115 V or 0.5 A @ 230 V |
| Safety Compliance | IEC 348, UL 1244, CSA |
| Military Classification | MIL-T-28800D Type III, Class 5, Style E, Color R |
| Warranty | One year |
| Input Terminals | Gold-plated tellurium copper |
| Physical | |
| Dimensions (H × W × D) | 88.9 mm × 425.5 mm × 502.9 mm |
| Net Weight | 12 kg (26.5 lbs) |
| Shipping Weight | 14.8 kg (32.5 lbs) |
Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
Model No
Keysight
Condition
Used
Manufacturer
Agilent
Ac voltage
1 kV
Dc voltage
1 kV
Resolution
8.5
Type
Bench
1
Extended Memory
2
High stability 4 ppm per year reference
H01
Special 1000 Vrms ac maximum input voltage
