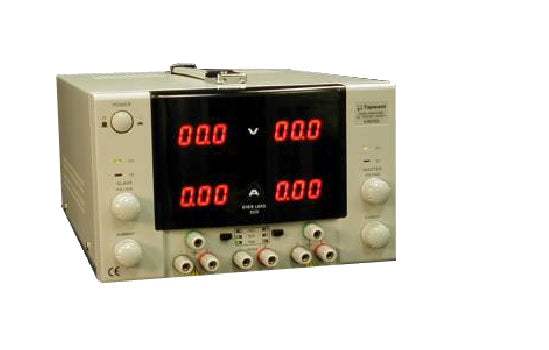

6303D-10 Topward DC Power Supply Used

6303D-10 Topward DC Power Supply Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Output Voltage: 0-30V x 2
  • Output Current: 0-3A x 2
  • 5V/5A constant-voltage output
  • 10-turn Voltage control
  • Twin power output with tracking function for automatic selection of parallel or serial connection
  • Short-circuit protection against external input while providing constant voltage and constant current
  • Allows serial or parallel connection with the same power supply model
Share on
View full details
More Details
Specifications
Datasheets

5V Fixed Operation

  • Load Regulation: < 10mV
  • Line Regulation: < 5mV
  • Ripple & Noise: < 2mVrms
  • Voltage Accuracy: 5V + 0.25V
  • Output Current: 5A

Constant Voltage Characteristics

  • Load Regulation: + 0.01% + 2 mV
  • Line Regulation: + 0.01% + 2 mV
  • Ripple & Noise: (< 200W) < 0.5mVrms
  • Ripple & Noise: (> 200W) < 1mVrms

Constant Current Characteristics

  • Load Regulation: (<200W) < 10mA
  • Load Regulation: (>200W) < 15mA
  • Line Regulation: + 0.01% + 2mA
  • Ripple & Noise: (< 200W) < 1mArms
  • Ripple & Noise: (> 200W) < 3mArms

Display Accuracy

  • Digital Display (D): < 0.1% + 2d

Programming Speed

  • Rise Time (No Load): < 100mS; (Load): < 200mS (<6A), < 500mS (<10A), < 1S(> 10A)
  • Fall Time (No Load): < 2.5S; (Load): < 250mS
  • Output Impedance: < 2m? + 2 µH
  • Recovery Time: < 100 µS to within 0.1% of set voltage (50% to 100% load change)

Functions

  • Series Connection: Different models can be connected in series (< 240V)
  • Parallel Connection: Same models can be connected in parallel (< 24A)

Tracking Operation

  • Tracking Error: + 0.2% + 10mV
  • Series Regulation: + 0.3% + 10mV

Operation Mode

  • Independent: Two independent outputs and 5V fixed output; Output from 0 to rating voltage and 0 to rating ampere
  • Serial: Output from 0 to + rating voltage at rating ampere; Output from 0 to double rating voltage at rating ampere
  • Parallel: Output from 0 to double rating current at voltage rating
  • Power Source: ACV 100/120/220/240 + 10%, 50/60 Hz

The Topward 6303D-10 is a 205 W, 30V/3A x 2, 5V/5A DC Power Supply with a 10-turn Voltage Control Option.

Model No

6303D-10

Condition

Used

Manufacturer

Topward

Current

3 A

Voltage

30 V

Power

205 W
