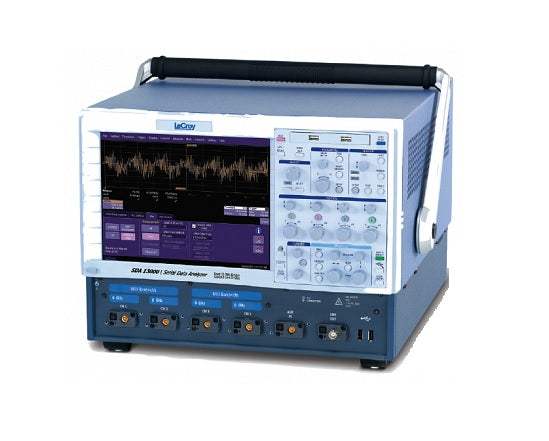

SDA13000 Teledyne LeCroy Digital Oscilloscope Used

SDA13000 Teledyne LeCroy Digital Oscilloscope Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

WARNING!!!

***THIS HAS OFFERS IN EPDS THAT CONTAIN UNDERSCORES AND IS CAUSING ERRORS ON IMPORT***

Features:

  • 4 Channel X-Stream Color SDA
  • 13 GHz Bandwidth
  • Single-Shot Sample Rate/Ch: 40 GS/s on 2 or 1 Channel; 20 GHz on 4 or 2 Channels
  • 40 Mpts on 2 Channels; 20 Mpts on 4 Channels at 6 GHz
  • Powerful Serial Data Analysis for Next Generation Standards
  • Pristine signal integrity measurements
  • Accurate jitter analysis
  • Powerful advanced waveform analysis
  • Stable, repeatable results
Share on
View full details
More Details
Specifications
Datasheets

The LeCroy SDA 13000 integrates all the key measurement and analysis tools into one device:

  • Serial data measurements up to 10 Gb/s
  • WiMedia UWB Tx testing up through band group 5
  • LeCroy 8b/10b serial decode option with powerful search capability enables captured waveforms to be searched for user-defined sequences of symbols. Multi-lane analysis decodes up to four simultaneously captured lanes
  • Capture of up to 12 million Unit Intervals (UI) in a single acquisition allows measurements of important low-frequency effects, such as spread spectrum clocking and switching power supply noise
  • LeCroy’s Digital Signal Processing (DSP) technology brings uniformity in frequency and phase response, resulting in dependable eye pattern representation. LeCroy uses DSP for equalization compensation, not BW extension
  • Configurable software PLL for any standard or custom requirement

Supports testing of next generation serial data standards:

  • 10 Gb/s Ethernet
  • 8.5 Gb/s Fibre Channel
  • 6 Gb/s SATA III / 3 Gb/s SATA II
  • 6 Gb/s SAS
  • 4.8 Gb/s FB-DIMM
  • 6.25 Gb/s double XAUI

The 13 GHz SDA 13000 is ideal for analysis in systems with serial data rates up to 7 Gb/s. The SDA 13000 features an architecture supporting 2 channels at full BW. The SDA 13000 shares the same advanced serial data and jitter analysis capabilities of the SDA 18000, including Q-Scale analysis.

Model No

SDA13000

Condition

Used

Manufacturer

Teledyne LeCroy

Channels

4

Frequency

13 GHz

Record length

40 MPts

Sampling rate

40 GS/s

LeCroy SDA 9000 SDA 11000 SDA 13000 SDA 18000
