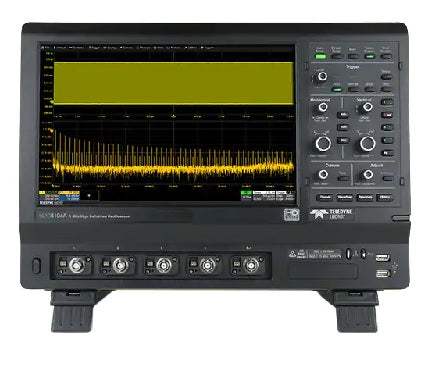

HDO4104A Teledyne LeCroy Mixed Signal Oscilloscope Used

HDO4104A Teledyne LeCroy Mixed Signal Oscilloscope Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 4 analog channels
  • 12-bit ADC resolution, up to 15-bit with enhanced resolution
  • 200 MHz, 350 MHz, 500 MHz and 1 GHz bandwidths
  • Long Memory – up to 50 Mpts
  • Multi-language User Interface
  • WaveScan - Search and Find
  • LabNotebook Documentation and Report Generation
  • History Mode
  • Spectrum Analyzer Mode
  • Power Analysis Software
  • 16 Digital Channel MSO option
  • Serial Trigger and Decode options
  • 12.1" WXGA multi-touch screen display
  • Wide probe selection for power electronics, embedded electronics, and mechatronics applications
  • Debug complex embedded designs with integrated 16 channel mixed signal capability
  • Quickly locate analog or digital waveforms for runts, glitches or other anomalies with WaveScan
  • Scroll back in time to isolate anomalies and quickly find the source of the problem
  • Capture many fast pulses in quick succession or events separated by long periods of time
  • Save all results and data with a single button press and create custom reports with LabNotebook
  • View signal details in the frequency domain with a spectrum analyzer style user interface
  • Quickly see the state of all the digital lines at the same time using convenient activity indicators
  • Use automatic measurement parameters and math functions to understand every waveform detail
  • HD4096 High Definition Technology
Share on
View full details
More Details
Specifications
Datasheets

HD4096 high definition technology enables oscilloscopes to capture and display signals of up to 1 GHz with high sample rate and 16 times more resolution than other oscilloscopes. Waveforms captured and displayed on oscilloscopes with HD4096 technology are cleaner and crisper. Signal details often lost in the noise are clearly visible and easy to distinguish HD4096 enables oscilloscopes to deliver unmatched measurement precision for improved debug and analysis.

MAUI: Most advanced User Interface

Developed to put all the power and capabilities of the modern oscilloscope right at your fingertips. Designed for touch; all important oscilloscope controls are accessed through the intuitive touch screen. Built for simplicity; time saving shortcuts and intuitive dialogs simplify setup. Made to solve; a deep set of debug and analysis tools helps identify problems and find solutions quickly. MAUI with OneTouch introduces a new paradigm for oscilloscope user experience. Dramatically reduce setup time with revolutionary drag and drop actions to copy and setup channels, math functions, and measurement parameters without lifting a finger. Use common gestures like drag, drop, and flick to instinctively interact with the oscilloscope. Quickly enable a new channel, math or measurement using the "Add New" button and simply turn off any trace with a flick of the finger. These OneTouch innovations provide unsurpassed efficiency in oscilloscope operation.

Applications:

  • Analyze Circuits, Line-Power Harmonics, Power Conversion Devices
  • Data Storage Device Testing
  • Measuring Faults along Cable Connectors, Transmission Cables
  • Aviation
  • HAM Radio

Model No

HDO4104A

Condition

Used

Manufacturer

Teledyne LeCroy

Channels

4

Frequency

1 GHz

Record length

50 MPts

Sampling rate

10 GS/s
