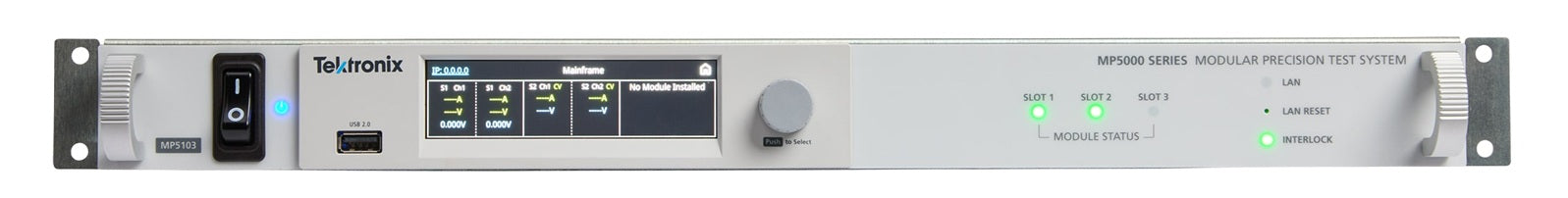

MP5103 Tektronix DC Power Supply New

MP5103 Tektronix DC Power Supply New

$4,750
$4,750 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 1U mainframe supporting 600W output power
  • 3 configurable slots to mix & match PSU and SMU modules
  • PSU and SMU modules are sold separately
  • Add or remove modules without powering off the mainframe
  • 18 digital I/O pins support handshaking with other test rack equipment
  • TSP-Link facilitates synchronization within 500 ns across multiple mainframes
  • 1 Gbps Ethernet and USB 3.0 data streaming
  • Capacitive touch display
  • USB, Ethernet, and IEEE-488.x connectors
  • Triggering supported
View full details
More Details
Specifications
Datasheets

Low Profile Modular Mainframe (600W, 3-Slot, System Power Supply, MP5000 Series)

The Tektronix MP5000 Modular Precision Test System accommodates your sourcing needs within a 1U rack space. This top-tier automated test equipment (ATE) optimizes rack space by incorporating multiple source measure units (SMUs) and power supplies with adaptable module options. Featuring three slots and dual-channel modules, it offers up to six parallel channels. For higher channel count applications, TSP-Link provides a solution to connect mainframes in a master-subordinate configuration, effectively allowing them to function as one unit. This facilitates the creation of an optimized source and measurement system suitable for a wide range of applications, from validating design and debugging to complex parallel test systems used in ATE.

NOTE: PSU and SMU modules are sold separately.

MP5000 Series Benefits

  • Reduce footprint & cost
  • Rack & stack mainframes with minimal space
  • Quickly and easily remove or swap modules for faster set up
  • Utilize common software e.g Python with provided drivers and examples
  • Implement high channel count parallel test with tight synchronization
  • Mix & match PSUs & SMUs in one mainframe to meet cost-performance needs

Available Modules (Sold Separately)

  • Source Measure Unit (SMU) MSMU60-2 (left)
    • 2 SMU channels per module, 6 channels per mainframe
    • Up to 60V and up to 1.5 A per channel
    • Offers 4-quadrant voltage/current source and measure for each channel with 6½-digit measure resolution down to 100 femtoamps
  • Power Supply Unit (PSU) MPSU50-2ST (right)
    • 2 isolated channels per module, 6 channels per mainframe
    • Up to 50 V and up to 5 A per channel
    •  Extended voltage and current ranges with up to 100 V and up to 10 A when channels are stacked in series or parallel.

Software

  • Intuitive Web Interface: A highly visual, interactive display designed for troubleshooting multi-channel setups and remote instrument monitoring
  • TSP Toolkit: Facilitates the development of Test Script Processor (TSP) scripts for automation within the widely-used Microsoft Visual Studio Code (VS Code) editor
  • Supporting Drivers: Accelerate software development with drivers such as Python and IVI

Model No

MP5103

Condition

New

Manufacturer

Tektronix-3

Power

600 W

Tektronix MP5000 Flyer
