• FG501 Tektronix Function Generator
1 1
Used
Compare
lab tested

FG501 Tektronix Function Generator Used

FG501 Tektronix Function Generator Used

Calibrations
Check Pricing
Request a Quote

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Frequency: 0.01 Hz to 1 MHz in decade steps
  • Output Max.: 20 Vp-p into high impedance, 10 V into 50 Ω (SN < B130000: 15/7.5 V)
  • Offset Max.: ±7.5 Vp-p into high impedance, 5 V into 50 Ω (SN < B130000: 5/2.5 V)
  • Signals: sine, square, triangle, ramp, pulse
  • Voltage controlled frequency input (1000:1 ratio)
  • Triggering
  • Variable phase control
  • Symmetry variable from 5—95%
  • Internal sweep generator, 3 decades, lin/log
Share on
View full details
More Details
Specifications

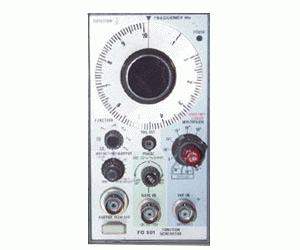

The Tektronix FG501 is a general-purpose, low frequency function generator producing low distortion sine,square,triangle,pulse, and ramp waveforms.Frequency is selectable from .001 to 1 MHz (switched in decade steps). An external VCF input permits controlling the output frequency from external voltage source.Frequency sweep up to 1000:1 ratio may be accomplished by applying a voltage ramp to the VCF input. Output amplitudes of 15 Vp-p open circuit and 7.5 V into 50-ohms can be obtained.

Model No

FG501

Condition

Used

Manufacturer

Tektronix

Frequency

1 MHz

Compare All Models
