TG700 Tektronix TV Generator Used

TG700 Tektronix TV Generator Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Multiformat Analog and Digital Test Signal Generation
  • Ideal Channel Configuration and Performance to Support Reference Generator Needs
  • Modular Expandable Platform
  • Stay GenLock™ – Unique, Robust Genlock Mode provides Stable Synchronization Signals for Digital and Traditional Broadcast Facilities
Share on
View full details
More Details
Specifications
Options
Datasheets
Manuals
Specifications
  • Internal Reference Frequency: 13.5 MHz
  • Long Term Stability: Less than 1 ppm/year
  • Number of Slots for Modules: 4
  • Power Supply Slot: 1
  • Network Interface: 10Base-T Ethernet

Applications:

  • Sync Pulse Generator and Test Signal Generator for Post Production and Broadcast Facilities
  • Test Signal Generator for Research and Development
  • Equipment Design and Maintenance

The Tektronix TG700 is a multiformat, analog and digital, precision signal generation platform. Designed with the changing needs of the video industry in mind, it offers sync pulse generation and test signal generation for a wide array of analog, serial digital, and digital high-definition formats. The TG700 Multiformat Video Generator has a modular architecture that offers the flexibility to meet the single format and growing multiformat needs of the video professional. The mainframe allows up to four of the following modules to be fitted in the mainframe.

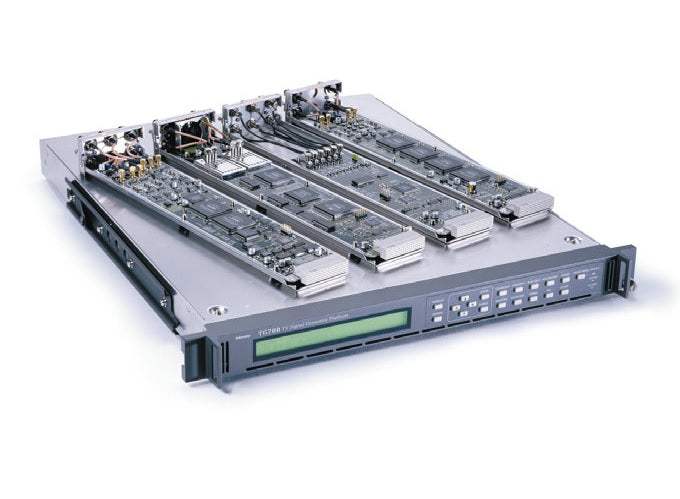

*The Modules pictured are not included in the purchase of the TG700 unless specified.

Model No

TG700

Condition

Used

Manufacturer

Tektronix

FP

Frame picture function (available only for AVG7 , AWVG7 , DVG7 and HDVG7 modules)

Tektronix TG700
Tektronix TG700 Service Manual
Tektronix TG700 User Manual
