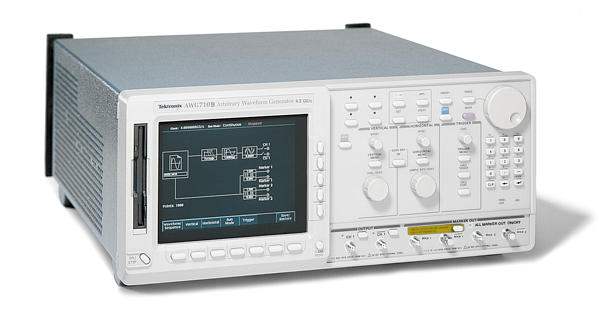

AWG710B Tektronix Arbitrary Waveform Generator Used

AWG710B Tektronix Arbitrary Waveform Generator Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • 4.2 GS/s Sample Rate Simulates Real-world Signals Up To 2.1 GHz
  • 2 Markers With 2.0 ps; RMS (@ 4.2GS/s, Typical) Jitter
  • 32.4M (32,400,000) or 64.8M (64,800,000) Point Record Length with Option 01
  • Analog Bandwidth to 2 GHz (Option 02)
  • Direct External clock input
  • Synchronous operation mode supports two AWG710B outputs (2: analog, 4: marker) synchronization
  • Waveform Quick Editor with 300 fs Edge Timing Resolution
  • Allows Two-signal Mix Function Digitally to Support Disk Drive Noise Performance Test and Pre/De-emphasis Serial Data Communication Test
  • Real-time Sequencing Creates Infinite Waveform Loops, Jumps, Patterns and Conditional Branches
Share on
View full details
More Details
Specifications
Options
Datasheets
Manuals

The AWG710B Arbitrary Waveform Generator Delivers World-class Signal Fidelity at 4.2 GS/s to Solve Ever-increasing Measurement Challenges. New two box synchronous operation function supports 2 channel 4.2 GS/s solution.

The AWG710B combines world-class signal fidelity with ultra high-speed mixed signal simulation, a powerful sequencing capability and graphical user interface with flexible waveform editor, to solve the toughest measurement challenges in the disk drive, communications and semiconductor design/test industries.

The built-in signal applications enable you to easily create standard waveforms for disk drive read channels, communications up to 4.2 Gb/s such as ITU-T, TI.102, Fibre Channel and SDH/SONET also various semiconductor applications.

Model No

AWG710B

Condition

Used

Manufacturer

Tektronix

Frequency

5.8 GHz

2

Extends analog bandwidth to 2 GHz

Tektronix AWG710B
Tektronix AWG710 AWG710B Programmer Manual
Tektronix AWG710 AWG710B User Manual
