P80318 Tektronix Differential Probe Used

P80318 Tektronix Differential Probe Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 18 GHz Bandwidth
  • Direct in Circuit TDR Testing
  • Reliable and Repeatable Resolution of Impedance Variations to 0.12"
  • Adjustable Probe Pitch from 0.5 mm to 4.2 mm
  • Probing of Fully Balanced Differential Signals Without Ground Contact
  • Double Cushioning Design Enables Probe Tips to Maintain Proper DUT Contact
  • Protects Sampling Module from Static Damage when Used with Two 80A02 Modules
Share on
View full details
More Details
Specifications
Datasheets

Applications:

  • Circuit Board Controlled
  • Impedance Testing (TDR)
  • Loss Tangent Measurements for
  • Differential Transmission Lines
  • Failure Analysis of PCB with or
  • Without Components Mounted
  • Package Impedance Testing (TDR)

Description:

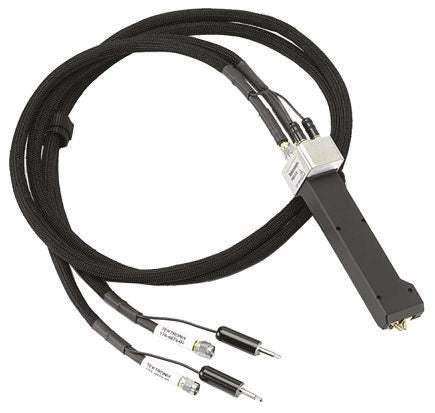

The P80318 is an 18 GHz 100 Ω input impedance differential TDR hand probe. This probe enables high fidelity impedance measurements of differential transmission lines. The adjustable probe pitch enables a wide variety of differential line spacing and impedances. The P80318 probe also includes two precision SMA cables with parallel control lines that provide the 80A02 the control for EOS/ESD protection.

Model No

P80318

Condition

Used

Manufacturer

Tektronix

Frequency

18 GHz
