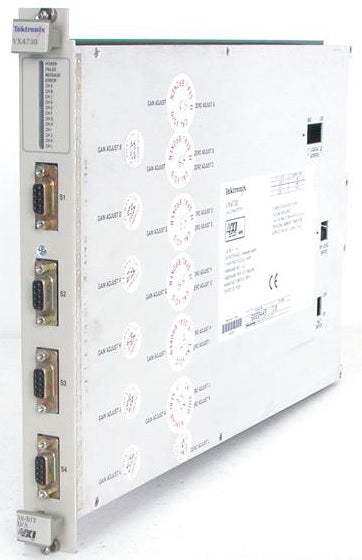

VX4730 Tektronix Module Used

VX4730 Tektronix Module Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 1-Slot, C-Size, VXI Module
  • 12 Independent D/A Channels
  • 16-Bit Resolution
  • DAC Output Range: ±16.38 Volts
  • DAC Output Current: 60mA
  • Buffered and Non-Buffered Modes
  • Integrated Self-Test, LED Indicators
Share on
View full details
More Details
Specifications

The VX4730 12-Channel D/A (DAC) Module consists of 12 independent single-ended 16-bit DACs, individually programmable from -16.3835 volts to +16.3835 volts in 0.5 millivolt steps. Monotonicity is guaranteed to 14 bits.

Each output channel of the DAC provides a minimum of 60 milliamperes of current, with all channels driven. In addition, any individual channel may provide up to ±16.3835 V into a 40 Ohm load. The total amount of all 12 channels cannot exceed 720 mA.

Model No

VX4730

Condition

Used

Manufacturer

Tektronix
