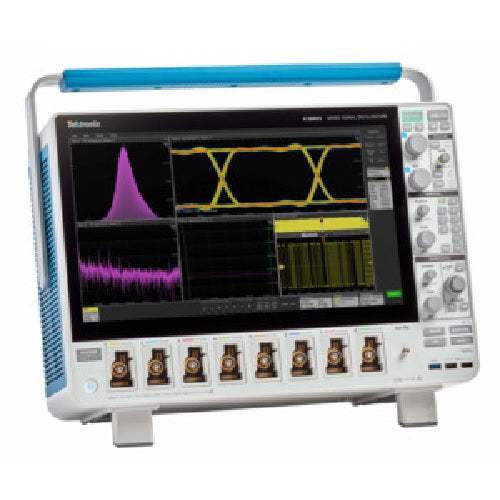

MSO64 6-BW-1000 Tektronix Mixed Signal Oscilloscope Used

MSO64 6-BW-1000 Tektronix Mixed Signal Oscilloscope Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Bandwidth: 1GHz
  • Channels: 6
  • Vertical Resolution: 12-bits
  • Record Length: 62.5 M (standard)
  • Warranty: 1-year
  • Included: Certificate of Traceable Calibration Standard
Share on
View full details
More Details
Specifications
Datasheets

Tektronix MSO66B 6-BW-1000 Mixed Signal Oscilloscope, 6 Flex Channels, 1 GHz, 6 Series B

Key Benefits of the 6 Series B MSO Mixed Signal Oscilloscopes:

  • 12-bit ADCs and low-noise preamps for accurate measurements
  • 4, 6, or 8 inputs. Each FlexChannel™ input can be used as 8 digital channels for added visibility
  • Intuitive user interface with 15.6” HD touch display
  • TekVPITM probe interfaces support a wide range of probes
  • Powerful built-in measurements, statistics and trend plots
  • Application-specific measurements and automated testing
  • Optional built-in arbitrary/function generator
  • DVM and frequency counter free with registration
  • Optional Windows operating system
  • Upgradeable bandwidth, record length, and instrument options

More bandwidth. More channels. Less noise.

The best signal fidelity, 12-bit ADCs, up to 10 GHz bandwidth, and up to 8 FlexChannel inputs enabling you to confidently analyze and debug today’s embedded systems with gigahertz clock and bus speeds, while enjoying extraordinary convenience and user experience.

Summary:

Industry Leading Noise Performance

  • 75% reduction in noise from the 5 Series MSO at 1mV/div
  • NEW 50 GS/s interleave on two channels provides ~2dB noise improvement at ?20mV/div

Industry Firsts

  • 4, 6 and 8 channel product family above 2 GHz

User Selectable Operating System

Standard configuration is a removable SSD with a closed embedded operating system installed behind an access panel on the bottom of the instrument.

An optional SSD with a Windows 10 license can be installed behind an access panel on the bottom of the instrument.

When a Windows 10 SSD is installed:

  • You can minimize the scope app and get to a Windows desktop
  • You can install and run other applications on the scope
  • You can attach a second monitor and extend your desktop

Regardless of OS, the scope user interface runs exactly the same.

Model No

MSO64

Condition

Used

Manufacturer

Tektronix

Channels

6

Frequency

1 GHz

Record length

62.5 MPts

Sampling rate

6.25 GS/s

Tektronix 6 Series B MSO Product Fact Sheet
Tektronix MSO6 x B Factory Installed Options
Tektronix MSO6 x B Series Service Options
Tektronix 6 Series B MSO
