• MSO2014B Tektronix Mixed Signal Oscilloscope
1 1
Used
Compare
lab tested

MSO2014B Tektronix Mixed Signal Oscilloscope Used

MSO2014B Tektronix Mixed Signal Oscilloscope Used

$895
$895 $0
In Stock
Shipping calculated at checkout.
Calibrations
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Wave Inspector® controls provide easy navigation and automated search of waveform data
  • FilterVu™ variable low-pass filter allows for removal of unwanted signal noise while still capturing high-frequency events
  • 29 automated measurements, and FFT analysis for simplified waveform analysis
  • TekVPI® probe interface supports active, differential, and current probes for automatic scaling and units
  • 7 in. (180 mm) wide-screen TFT-LCD color display
  • Small footprint and lightweight - only 5.3 in. (134 mm) deep and 7 lb. 14 oz. (3.6 kg)
Share on
View full details
More Details
Specifications
Options
Datasheets

Specifications:

  • 4+16 analong channels
  • 100 Mhz bandwidth
  • 3.5 ns rise time
  • 1 GS/s
  • 1 m points

The Tektronix MSO2014B is a 100 MHz, 4+16 Channel mixed signal oscilloscope. The MSO2014B delivers advanced debug features at an entry-level price. Quickly find and diagnose problems in complex designs with up to 20 channels for analyzing analog and digital signals. With a deep record length of 1 M points standard on all channels, the MSO2014B lets you capture long windows of signal activity while maintaining fine timing resolution.

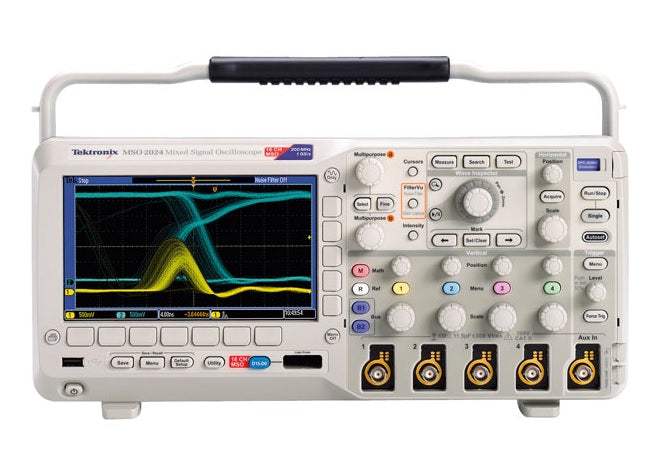

The image is for reference only. See product specification for details.

Model No

MSO2014B

Condition

Used

Manufacturer

Tektronix

Channels

4+16

Frequency

100 MHz

Record length

1 MPts

Sampling rate

1 GS/s
