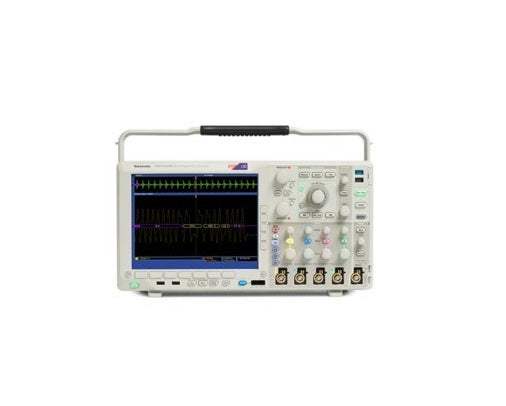

• MSO4104B Tektronix Mixed Signal Oscilloscope
1 1
Used
Compare
lab tested

MSO4104B Tektronix Mixed Signal Oscilloscope Used

MSO4104B Tektronix Mixed Signal Oscilloscope Used

$20,700
$20,700 $0
Shipping calculated at checkout.
Calibrations
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Wave Inspector controls provide easy navigation and automated search of waveform data
  • 42 automated measurements, and FFT analysis for simplified waveform analysis
  • 16 digital channels (MSO series)
  • Mixed signal design and analysis (MSO series)
  • Automated triggering, decode, and search on parallel buses
  • Per-channel threshold settings
  • Multichannel setup and hold triggering
  • MagniVu High-speed acquisition provides 60.6 ps fine timing resolution on digital channels
  • Optional serial triggering and analysis - automated serial triggering, decode, and search options for I2C, SPI, USB, Ethernet, CAN, LIN, FlexRay, RS-232/422/485/UART, MIL-STD-1553, and I2S/LJ/RJ/TDM
  • TekVPI probe interface supports active, differential, and current probes for automatic scaling and units
Share on
View full details
More Details
Specifications
Datasheets

Specifications:

  • 1 GHz
  • 4+16 Channel
  • 5 GS/s
  • 20 MPts

The MSO4104B is a 1 GHz, 4+16 Channel, 5 GS/s, 20 MPts mixed signal oscilloscope from Tektronix.

Model No

MSO4104B

Condition

Used

Manufacturer

Tektronix

Channels

4+16

Frequency

1 GHz

Record length

20 MPts

Sampling rate

5 GS/s
