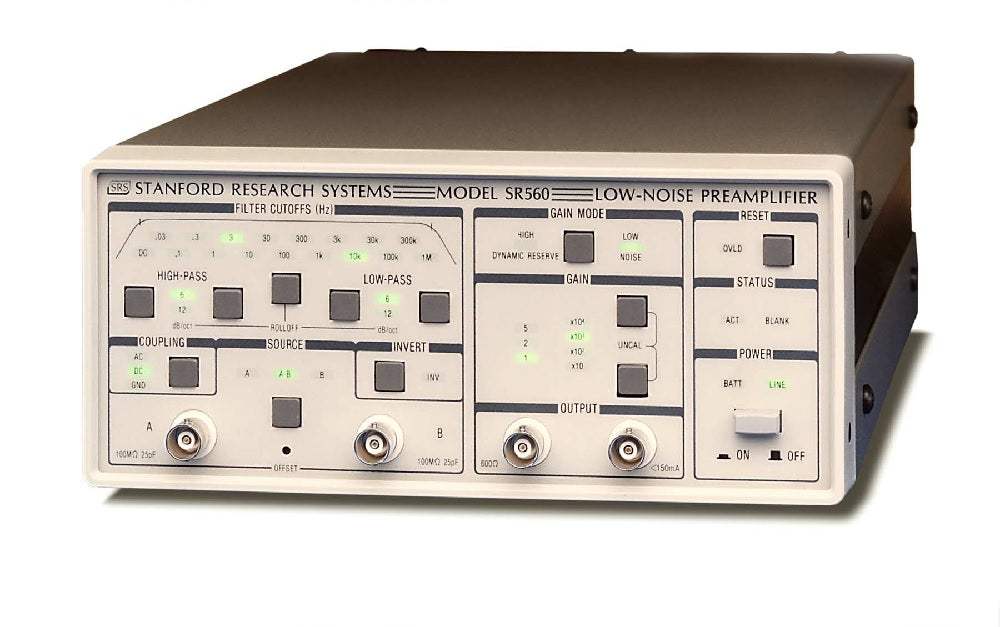

Stanford Research Systems SR560 Low-Noise Voltage Preamplifier (Pre-Owned)

Stanford Research Systems SR560 Low-Noise Voltage Preamplifier (Pre-Owned)

$3,495
$3,495 $0
In Stock
Shipping calculated at checkout.
Calibrations
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Stanford Research Systems SR560 Low-Noise Voltage Preamplifier (Pre-Owned)

Key Features At A Glance

  • Low-noise differential front-end: 4 nV/√Hz input noise at 1 kHz with 100 MΩ input impedance
  • Variable gain from 1 to 50,000 in a 1-2-5 sequence, with 0.5% vernier gain adjustment
  • DC to 1 MHz bandwidth; –3 dB at 1.2 MHz typical, ±0.3 dB flatness to 300 kHz (gains up to 1000)
  • Two configurable first-order RC filters: low-pass, high-pass, or band-pass; cutoffs 0.03 Hz to 1 MHz
  • AC- or DC-coupled, differential or single-ended inputs with fully floating BNC connections
  • Line or battery operation — three rechargeable lead-acid batteries provide up to 15 hours
  • RS-232 interface (9600 baud, receive-only) controls up to four units from one computer
  • Dual 600 Ω and 50 Ω outputs drive 10 Vpp; rear-panel ±12 VDC @ 200 mA bias supply
View full details
More Details
Specifications
Datasheets

The Stanford Research Systems SR560 is a high-performance, low-noise voltage preamplifier built around a differential front-end. It is designed to recover small voltage signals from the noise floor across a wide range of measurement work, offering selectable gain, configurable signal filtering, and the choice of line or battery operation in a single bench instrument.

The SR560 is suited to a wide range of applications, including low-temperature measurements, optical detection, and audio engineering. Its combination of low input noise, broad gain range, and front-panel signal filtering lets an engineer condition a weak signal before it reaches the downstream instrument in any of these measurement contexts.

ValueTronics stocks and holds its own inventory in a 20,000-square-foot secure warehouse at 1675 Cambridge Drive in Elgin, Illinois. Every pre-owned unit is inspected and functionally verified in-house before it ships, while new units leave factory-sealed exactly as received from the manufacturer.

Product Core & Specifications

Specification Value
Input
Inputs AC or DC coupled, single-ended or differential
Input impedance 100 MΩ + 25 pF
Maximum input 3 Vpp
CMRR 100 dB from DC to 1 kHz (100 mV common mode input at 1 kHz, gain of 100, low noise mode. Decreases by 6 dB/octave from 1 kHz to 1 MHz)
Noise 4 nV/√Hz at 1 kHz
Gain 1 to 50,000 in 1-2-5 sequence. Vernier gain in 0.5 % steps
Gain stability 200 ppm/°C
Bandwidth –3 dB at 1.2 MHz (typ.)
Flatness ±0.3 dB to 300 kHz (gains up to 1000)
Filters
Signal filters 2 configurable (low-pass or high-pass) 6 dB/oct rolloff filters. –3 dB points are settable in a 1-3-10 sequence from 0.03 Hz to 1 MHz.
Gain allocation High Dynamic Reserve — Gain is increased after the signal filters to prevent overloading. Low Noise — Gain is increased before the filters to improve noise figure.
Output
Maximum output 10 Vpp into 50 Ω and 600 Ω
Filter reset Long time constant filters may be reset with front-panel button.
DC drift 5 µV/°C referred to input (DC coupled)
Distortion 0.01 % at 1 kHz
Rear panel ±12 VDC @ 200 mA referenced to amplifier ground
General
External gating TTL input sets gain to zero
Interfaces RS-232, 9600 baud, receive only
Power 100/120/220/240 VAC, 6 W charged, 30 W while charging. Internal batteries provide 15 hours of operation between charges. Batteries are charged while connected to the line.
Dimensions 8.3" × 3.5" × 13.0" (WHD)
Weight 15 lbs. (batteries installed)
Warranty One year parts and labor on defects in materials and workmanship
Important: Maximum input: 3 Vpp.
Usage tip: the SR560 accepts the O560RMS single and O560RMD double rack-mount kits for rack installation, and the O560SB spare battery set (three batteries).

About this Pre-Owned unit

This pre-owned unit is inspected and functionally verified in-house before it ships and is backed by our pre-owned warranty. To confirm its exact condition, firmware revision, installed options, or included accessories for your application before ordering, contact our Test Architects.

  • Warranty included
  • Functional verification included
  • Standard Calibration Upgrade Options: No Calibration Required, NIST Traceable, Z540.1 or ISO 17025 with Data, Z540.3 Guardbanding with Data.
  • Note that unnecessary accessories may not be included (contact Test Architect to confirm).

ValueTronics supplies both new and used test and measurement equipment. New units ship factory-sealed, exactly as received from the manufacturer; every used unit is inspected and functionally verified in-house at our 20,000 sq ft secure facility in Elgin, Illinois before it ships. Our Test Architects can help you select the condition, calibration, and configuration that fit your application.

Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
