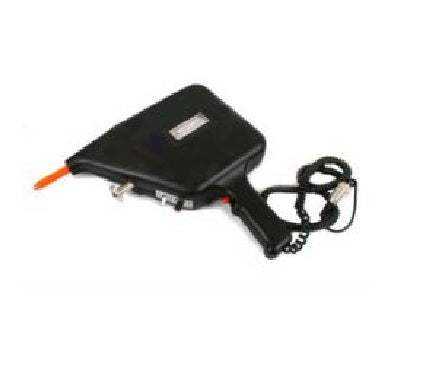

NSG432 Schaffner ESD Gun Used

NSG432 Schaffner ESD Gun Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Discharge voltage: 2 to 25 kV (0.2 - 2.5kV optional)
  • Polarity: positive/negative (depending on discharge network)
  • Discharge capacitor Cs: 150 pF ± 10%
  • Discharge resistor Rd: 330 ohms ± 10%
  • Operating modes: single/repetitive discharge
  • Rise time (air discharge): < 1 ns for voltages < 8 kV
  • Rise time (with contact discharge adapter): 0.7 - 1 ns
Share on
View full details
More Details
Specifications
Options
Datasheets
Manuals

The pistol-shaped Schaffner NSG435 ESD simulator for IEC 61000-4-2 is designed to sit comfortably in the operator’s hand, with current operating conditions constantly displayed and clearly visible.

The Schaffner NSG 435’s microprocessor-based controller and multifunction keypad provide the operator with instant access to its comprehensive range of built-in functions. The LCD panel continuously displays the operating status and all user-selected test parameters.

Model No

NSG432

Condition

Used

Manufacturer

Schaffner

402-283

Measuring accessory to IEC 802-1

402-579

Power supply with preselect counter

402-586

E-Field Adapter

402-587

H-Field Adapter , requires 402-598

402-593

Discharge ball 25 mm push fit

402-598

Mountable discharge gap adjustable

402-603

Discharge ball 25 mm for E-Field Adapter
