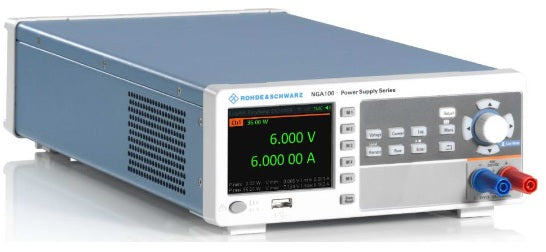

The Rohde & Schwarz NGA100 power supplies are linear, compact and easy to use. All models have excellent readback accuracy with a low-current range for demanding measurements.
Features such as data logging, arbitrary waveforms, built-in statistics and remote sensing make the instruments ideal for various bench applications. Equipped with a number of different remote interfaces, including USB and Ethernet, the R&S NGA100 power supplies are also great for automated tests.
The channel fusion feature extends voltage and current range. Get up to 200 V with the R&S NGA142 in serial mode and up to 12 A with the R&S NGA102 in parallel mode.
Advanced protection functions keep devices connected and power supplies safe.
Advanced electronic circuitry is often complex and sensitive to the supply line interference. The linear design of the output stages allows the R&S NGA100 power supplies to operate with minimum residual ripple and noise. Supplying extremely stable output voltage and current is crucial when developing sensitive components.
The R&S NGA100 power supply series has outstanding programming and readback accuracy to accurately measure and replicate a device’s actual power consumption, even at low voltage and current levels. IoT devices can have multiple sleep modes where current consumption is very low. To accurately determine these operating states, R&S NGA100 power supplies have a low-current measurement range. Currents below 200 mA are measured with a resolution of 1 μA and an accuracy of ±(0.15 % + 25 μA). In addition, integrated statistics show the min. and max. values for power, voltage and current. These built-in measurements reduce the need for external multimeters and simplify the setup.
*The image is for reference only. See product specification for details.
Model No
NGA141
Condition
New
Manufacturer
Rohde & Schwarz
Current
2 A
Voltage
100 V
Power
40 W
