MXO5C-820 Rohde & Schwarz NEW

MXO5C-820 Rohde & Schwarz NEW

$48,925
$48,925 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 8 analog channels / 2 GHz bandwidth
  • 16 digital channels without reducing number of analog channels (requires option MXO5C-B1)
  • Compact footprint for rackmount and bench applications
  • Based on the same technology as the MXO5 series
  • 500 Mpoints memory (1 Gpts via option MXO5C-B110)
  • Channel-dedicated 12-bit ADC with no sample rate limitations; 18-bit with HD mode
  • Integrated two channel 100 MHz arbitrary waveform generator (requires option MXO5C-B6)
  • Supports over 30 Rohde & Schwarz current and voltage probes
  • 10 MHz reference clock input and output connectors for superior time based accuracy
  • Maximum sampling rate: 5 GS/s (four channels), 2.5 GS/s (eight channels)
View full details
More Details
Specifications
Datasheets

The MXO 5C is based on MXO 5 hardware, firmware and software. When connected to a web browser, the user interface is an identical to an MXO 5 front panel. The SCPI commands, savesets and waveform formats are also identical.

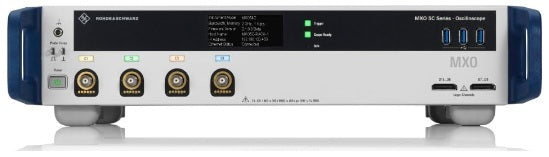

*The image is for reference only. See product specification for details.

Model No

MXO5C-820

Condition

New

Manufacturer

Rohde & Schwarz

Channels

8

Frequency

2 GHz

Sampling rate

5 GS/s
