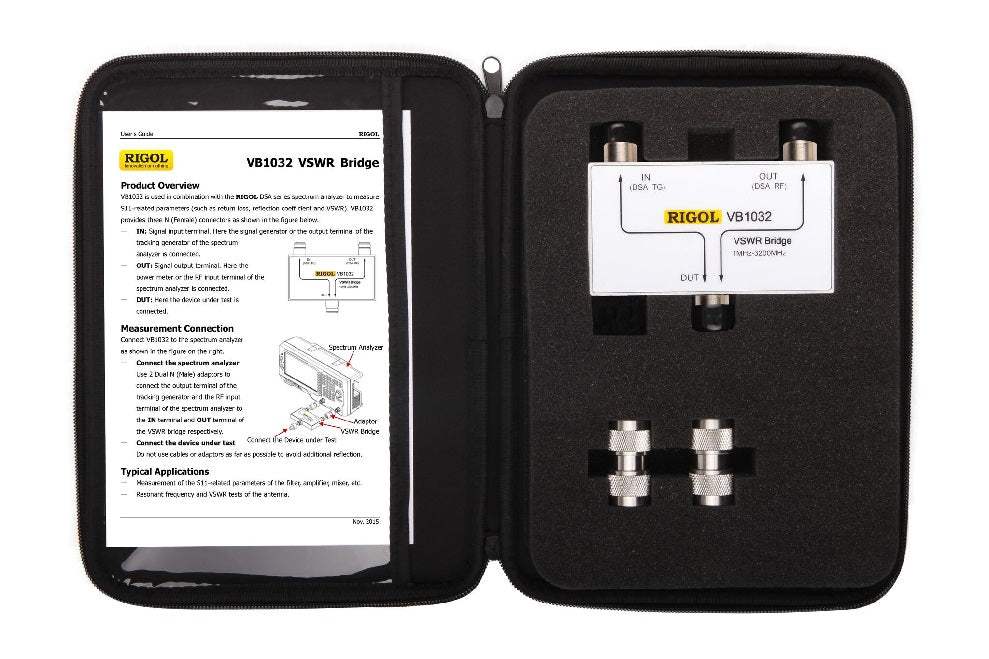

VB1032 Rigol Bridge New

VB1032 Rigol Bridge New

$659
$659 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Used together with Rigol DSA series spectrum analysers with tracking generators to make S11 measurements
  • The VSWR bridge connects directly onto the front of Rigol DSA series spectrum analysers with tracking generators to improve the test accuracy and to avoid the need for cables
  • VSWR Bridge with VSWR-DSA800, VSWR-DSA1000 licenses included
  • Frequency range: 1 MHz - 3.2 GHz
  • Typical Directivity: ≥ 30 dB
View full details
More Details
Specifications

Works with-

  • DSA8
  • RSA5
  • RSA3



The Rigol B1032 bridge is used in combination with the Rigol DSA series spectrum analyzer to measure S11-related parameters (such as return loss, reflection coefficient and VSWR).

The VB1032 bridge also provides three N (Female) connectors:

  • IN: Signal input terminal. Here the signal generator or the output terminal of the tracking generator of the spectrum analyzer is connected
  • OUT: Signal output terminal. Here the power meter or the RF input terminal of the spectrum analyzer is connected
  • DUT: Here the device under test is connected

Model No

VB1032

Condition

New

Manufacturer

Rigol
