• 72973 Pomona Coaxial Adapter
1 1
New
Earn Loyalty with Rewards
Compare

72973 Pomona Coaxial Adapter New

72973 Pomona Coaxial Adapter New

$23.99
$23.99 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • SMA JACK (F) TO JACK (F), PANEL
  • High bandwidth, small size, and durability for confident connections
  • DC - 18 GHz
  • Meets MIL-C-39012, IEC 169-15, CECC 22110.
  • Small size and durability for mobile communications
  • Precision machined and gold-plated for low loss
View full details
More Details
Specifications
Datasheets

Materials

  • Body is machined brass with gold plating
  • Center Contacts - Plug is gold plated brass and Jack is gold plated Beryllium copper
  • Insulators are high quality PTFE
  • Crimp Ferrules are copper with gold or nickel plating
  • Gaskets are silicone rubber

Specifications

  • Impedance: 50 Ω
  • Frequency Range: DC –18 GHz max.
  • Working Voltage: < 500 Vpeak
  • Dielectric Withstanding Voltage: 1,000 Vrms
  • VSWR: 1.25 max
  • Center/Outer Contact Resistance: 0.003/0.002 Ω max
  • Insulation resistance: > 5000 MΩ

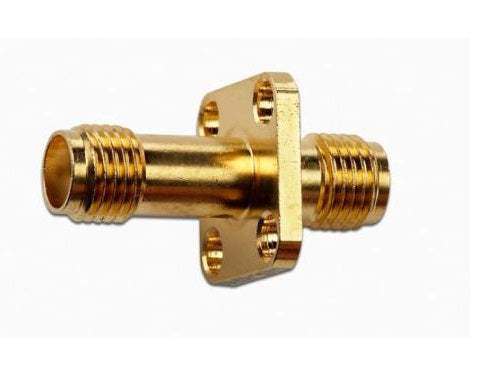

The Pomona 72973 is a panel mount SMA jack to SMA jack Straight Adapter. The 72973 features high bandwidth, small size and durability for confident connections. Precision machined and gold-plated for low loss. Gold plated brass center contacts for plug and gold plated beryllium copper center contact for jack.

Model No

72973

Condition

New

Manufacturer

Pomona

Pomona Electronics 72973
