4725 Pomona Triax Cable New

4725 Pomona Triax Cable New

Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

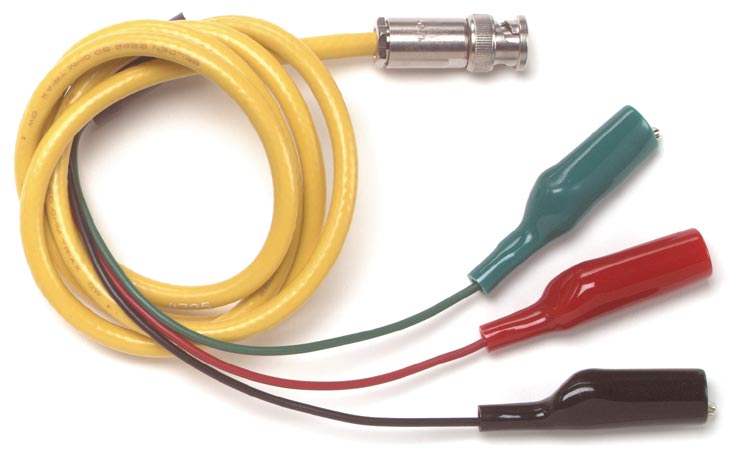

  • Triaxial BNC Male 2 Lug To Insulated Alligators Cable Assembly
  • Cable assembly is designed to mate to triaxial BNC style jacks with 2 lugs
  • Cable schematic is green alligator to shell, red alligator to center contact & black alligator to outer contact
  • Triaxial connector and alligators are tarnish resistant
  • Triaxial Cable/Alligator breakout is molded over with PVC for superior strength
  • Alligator jaws open up to .300” (7,62mm) for attachment to most test terminals
View full details
More Details
Specifications
Datasheets

Materials:

  • Triaxial (Male) 2 Lug Bayonet BNC
  • Body and Fittings: Brass, Nickel Plated
  • Intermediate and Center Contacts: Brass, Gold Plated
  • Cable: Belden 9222. Triaxial conductors 20 AWG, stranding 7 x 28 t.c., 50 Ohm Impedance
  • Polyethylene insulation, shields, tinned copper, .242” (6.15 mm) O.D., Color: Yellow
  • Cable Length: 36” (91.44cm)
  • Marking: "POMONA 4725"
  • Molded Breakout: PVC molded to breakout leads and cable, Color: Black
  • Breakout Leads: 20 AWG, 41 x 36 t.c., PVC Insulated, .087” (2.21 mm) O.D., Color: Black, Red Green
  • Alligators: Steel, Nickel Plated
  • Insulators: Vinyl. Colors: Black, Red and Green

Ratings:

  • Operating Temperature: +50°c (+122°F) Max.
  • Operating Voltage: 150 VRMS

The Pomona Electronics 4725 is a Triaxial BNC Male 2 Lug To Insulated Alligators Cable Assembly. The Cable assembly is designed to mate to triaxial BNC style jacks with 2 lugs. The 4725 has nickel plated and brass body fittings with gold plated intermediate and center contacts.

Model No

4725

Condition

New

Manufacturer

Pomona

Pomona Electronics 4725 5342
