3263 Pomona Banana Plug New

Name: 3263 Pomona Banana Plug New
Brand: Pomona
SKU: pomona_3263_new
Price: 34.99 USD
Availability: InStock

$34.99

$34.99 $0

Shipping calculated at checkout.

Product variants

Estimated Delivery in

5 - 7

business days (based on availability)

Additional Features:

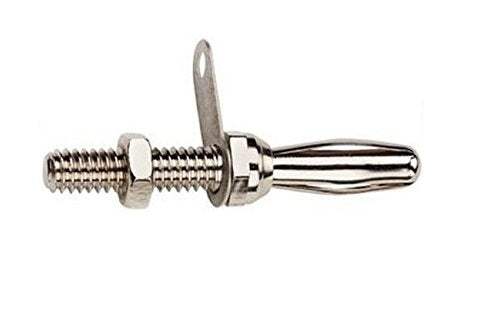

Standard Banana Plug With Threaded Stud and Solder Lug
Length: .50”
Thread: 6-32
Threaded stud for rapid mounting
Furnished with hex nut and tin plated solder lug
Ideal for connecting power supplies or test equipment to prototype circuit boards
Mates to Model #1581 or any standard banana jack

View full details

More Details

Specifications

Datasheets

Materials:

Banana plug:
Spring: Beryllium Copper, Berylco 25 per QQ-C-533, Cond. HT.
Plug Body: Brass per QQ-B-626, Alloy 360, ½ Hard Solder lug:
Material: Copper per QQ-C-576.
Finish: Electro-tin plated.
Hex Nut, 8-32:
Material: Brass per QQ-B-626, Composition 22, ½ Hard
Finish: Nickel plated

Ratings:

Working Voltage: 5000 VRMS
Current: 15 Amperes

Applications:

Test & Measurement, Power Management

The Pomona 3263 is a standard Banana Plug with threaded stud. 0.50-inch length and 6-32 thread. Furnished with hex nut and tin plated solder lug. Beryllium copper spring with brass plug. Ideal for connecting power supplies or test equipment to prototype circuit boards.

Model No

3263

Condition

New

Manufacturer

Pomona

Pomona 3263 3264 4511 4512
