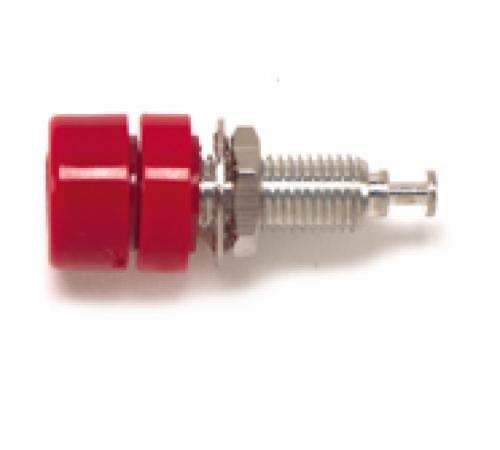

2854-9 Pomona Accessory New

2854-9 Pomona Accessory New

$42.99
$42.99 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

  • White in color
  • Banana Jacks mount into panels ranging in thickness from .063” (1.6mm) to .375” (9.5mm).
  • Model 2854 features gold plated body for optimum electrical connection.
View full details
More Details
Specifications
Datasheets

Specififcations

  • Banana Jack Body - Brass Nickel Plated, (Model 2854, Brass, Gold Plated)
  • Insulators: Polycarbonate (Model 4900, High Temperature Polyphenylene Sulfide)
  • 1/4 Internal Locking Washer: Steel, Nickel Plated
  • 1/4-32 Hex Nut: Brass, Nickel Plated
  • Operating Voltage: Hand-held Testing: 30VAC/60VDC Max.
  • Hand Free Testing in controlled Voltage Environment: 2500 WVDC.
  • Operating Temperature: +115°C (+239°F), Model 4900 +220°C (+428°F)
  • Current: 15 Amperes

Banana Jacks mount into panels ranging in thickness from 0.063 (1.6mm) to 0.375 (9.5mm) and feature a gold plated body for optimum electrical connection.

Model No

2854-9

Condition

New

Manufacturer

Pomona

Pomona 1581 2854 4900 Datasheet
