1325-0 Pomona Banana Plug New

1325-0 Pomona Banana Plug New

$28.99
$28.99 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Standard Banana Jack, Solderless and Stackable
  • Color: Black
  • Designed to fit on the end of any 22 AWG to 18 AWG wire
  • Cross hole wire entry fits wires up to .12” (3mm) diameter
  • Available with tarnish resistant nickel or gold plating for very low contact resistance
  • Set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver
  • Fits standard panel and binding post banana jacks .161” to .166” (4,0mm to 4,2mm) diameter
View full details
More Details
Specifications
Datasheets

Materials:

  • Banana Jack: Beryllium Copper, Gold Plated
  • Banana Plug: Body – Brass, Nickel Plated
  • Spring – Beryllium Copper, Nickel Plated
  • Insulation: Polypropylene
  • Set Screw: Steel, Zinc Plated, 8-32 Single Slot

Ratings

  • Voltage: For CE compliance and for personal safety, do not hold in hand when voltages exceed 33 Vrms/70 Vdc.
  • Maximum voltage for hands free use in controlled testing environments: 5000 Vrms Max.
  • Do not use on circuits where transient stresses can exceed the rated voltage.
  • Current: 15 Amps
  • Maximum Operating Temperature: +122ºF (+50ºC) max.

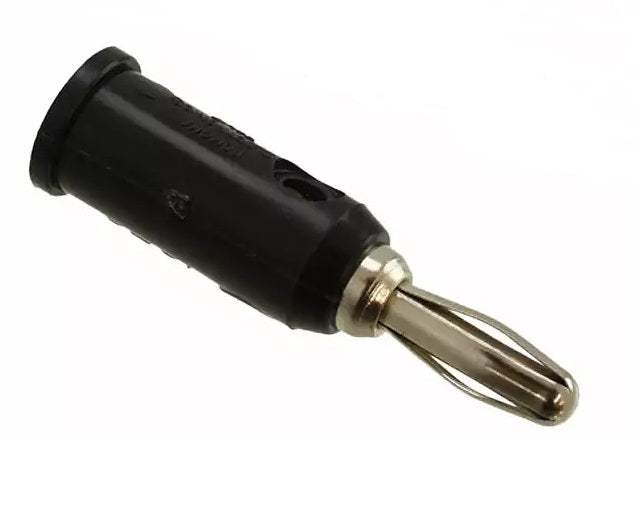

The Pomona 1325-0 is a black standard banana plug, solderless and stackable. They are designed to fit on the end of any 22 AWG to 18 AWG wire.

Model No

1325-0

Condition

New

Manufacturer

Pomona

Color

Black
