• 4524A Kulicke & Soffa Manufacturing Test Equipment
1 1
Used
Compare

4524A Kulicke & Soffa Manufacturing Test Equipment Used

4524A Kulicke & Soffa Manufacturing Test Equipment Used

check availability
Request a Quote

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Large 6" x 6" (152 mm x 152 mm) bonding area
  • One bond head for deep access and standard bonding
  • Missing ball detector system
  • Consistent ball size
  • Wide range of work stage options
  • Digital logic controls all machine functions, including ball size and tail length
  • Complies with UL and CE standards
Share on
View full details
More Details
Specifications
Datasheets

XY Table

  • Bonding area: 152 mm x 152 mm (6" x 6")
  • Throat Depth: 143 mm (5.6")
  • Gross Table Motion: 140 mm (5.5")
  • Fine Table Motion: 14 mm (0.55")
  • Mouse Ratio: 6:1
  • Z Motion System: DC servo/LVDT control
  • Z Travel: Low Reset: 9.1 mm (360 mil)
  • Ultrasonic System: High Q 60 kHz transducer, PLL Ultrasonic Generator Separate 1st and 2nd Bond Controls

Parameters

  • Low Ultrasonic Power: 1.3 W
  • High Ultrasonic Power: 2.5W
  • Bond Time: 10-100 mSec/10-1000 m Sec
  • Bond Force (no springs used): Force Coil 10-160 grams, Counterweight to 50 grams, Separate 1st and 2nd Bond Controls
  • Wire Termination: Clamp Tear
  • Ball Formation System: Negative E.F.O. High-End Digital System
  • Missing Ball System: Indication and auto-stop for 'Open' and 'Short' Error
  • Temperature Controller: 250°C ± 5°C maximum

Process Capability

  • Wire Diameter Range: Gold: 18 to 76 um (0.7 to 3 mil); Spool: 2" x 1" double flange

Facility Requirements

  • Electrical: 100-120/220-240V + 10%
  • Dimensions: 680 mm (27") W x 700 mm (27.5") D x 530 mm (21") H

Applications

  • Hybrid/MCMs
  • Opto-Type
  • Microwave
  • Chip-On Board
  • Laser
  • Discrete devices

The Kulicke & Soffa 4524A is ideal for use in process development, production, research or as added manufacturing support. The 4524A Ball Bonder for gold wire offers versatile production capabilities for bonding applications from simple discrete devices up to complex hybrid, microwave devices.

Offering operator control over looping and wire length, the bonder provides excellent results in tight spaces or for unusual loop requirements. A built-in programmable Negative Electronic Flame-Off system provides ball size fine control and consistency. The 4524A also allows for separate adjustment of wire parameters, with individual channels for 1st and 2nd bonds. With its capacity for a wide range of wire diameters, individual bond parameters and semi-auto and manual operational modes, the Model 4524A supports a variety of applications including Hybrid/MCM, Opto-devices, Microwave and Discrete devices.

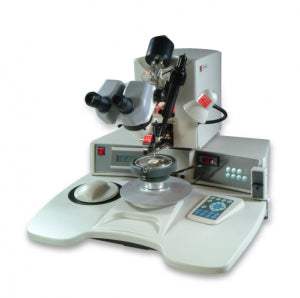

The image is a representative of actual product-see specifications for product information.

Model No

4524A

Condition

Used

Manufacturer

Kulicke & Soffa
