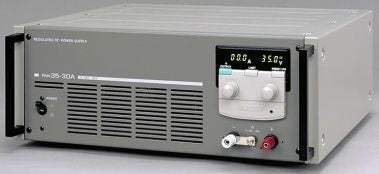

PAN35-30A Kikusui DC Power Supply Used

PAN35-30A Kikusui DC Power Supply Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • DC POWER SUPPLY, 0-35V, 0-30A
  • Performance Characteristics of the PAN 35-30A
  • Form Factor Benchtop
  • No. of Outputs 1 o/p
  • Output 1 Max. power 1050 Watts
  • Output 1/Range 1 Max. Current 30 A (0 V to 35 V)
  • Voltage Ripple and Noise 0.5 mV
  • Current Ripple and Noise 5 mA
  • Load Regulation, Voltage 1 mV
  • Load Regulation, Current 5 mA
  • Line Regulation, Voltage 1 mV
  • Line Regulation, Current 3 mA
  • Remote Sensing Measurement Yes
  • Multiple Unit Combinations Parallel,Series
  • Overvoltage Protection Yes
  • Overcurrent Protection Yes
  • Over-temperature Protection Yes
  • Local Lockout No
  • Self test No
Share on
View full details
More Details
Specifications

The PAN-A Series is a high-performance, highly reliable DC power supply unit featuring regulated variable voltage. These units are suitable for use in a range of fields including research and development, quality control, and production. The PAN-A series DC Power Supplies

PAN-A Series consists of a pre-regulator using FETs and a Series regulator using power transistors, providing the high-quality output characteristic of the latter as well as the low power-source harmonic distortion of choke input type phase control. To achieve the high reliability and safety, components of sufficient derating and long-proven mounting techniques are used throughout. All models are carefully designed and furnished with over voltage protection (OVP) and various safety functions.

Model No

PAN35-30A

Condition

Used

Manufacturer

Kikusui

Current

30 A

Voltage

35 V

Power

1.05 kW
