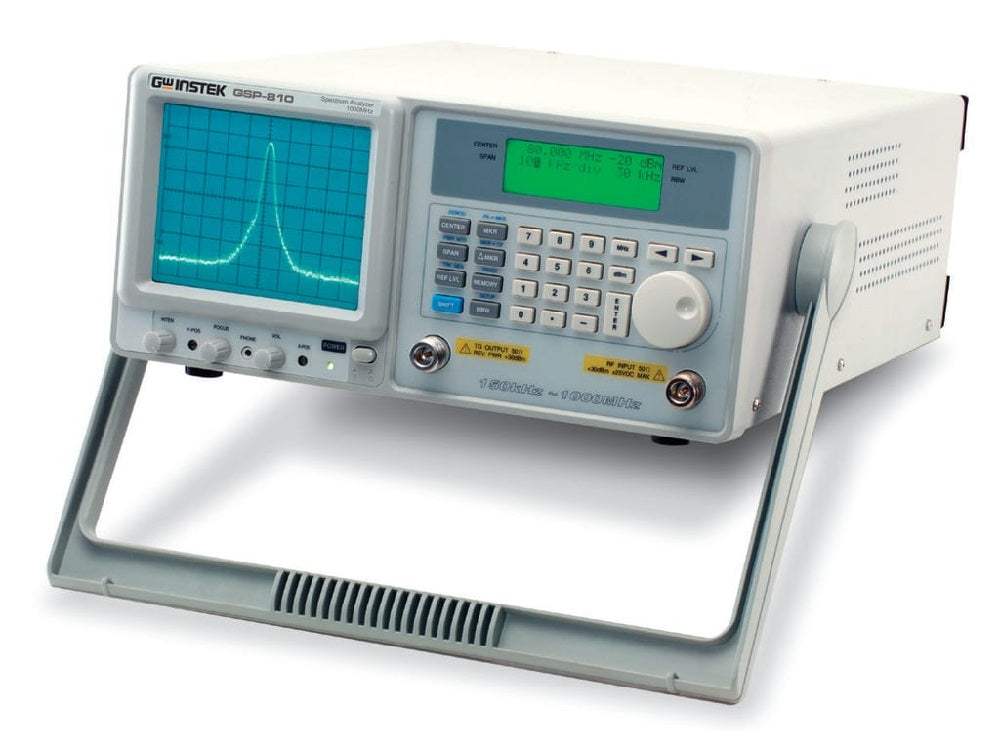

GSP-810 Instek Spectrum Analyzer Used

GSP-810 Instek Spectrum Analyzer Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Frequency Range: 150kHz ~1GHz
  • Fully Digital Phase Locked Loop Technique Design
  • High Frequency Stability: ±10ppm
  • RBW: 3K, 30k, 220k, 4MHz
  • High Input Protection Level: +30dBm, ±25VDC
  • Reference Level Range: -30dBm~ +20dBm
  • Good Noise Floor Performance: -95dBm @30kHz, -100dBm Typical @220kHz RBW
  • Two Markers for Absolute and Relative Measurement
  • Functions: Max. Hold, Average (2 ~ 32 Traces), Freeze, Peak Search, Marker to Center Functions
  • 9 Memories of Save/Recall
  • Support standard RS-232C Interface to connect with PC
Share on
View full details
More Details
Specifications
Options
Datasheets

The GSP-810 Spectrum Analyzer is a digitally synthesized, easy-to-use RF measurement instrument with a frequency range up to 1GHz. It uses a state-of-art design with a phased-locked RF system that combines measurement quality and performance with an affordable price. The GSP-810 is also designed for rugged use with 1-watt input protection. With a compact size and feature packed functions, the GSP-810 is an affordable, expandable, and high-quality instrument for the most demanding needs.

Model No

GSP-810

Condition

Used

Manufacturer

Instek

Frequency

1 GHz

1

Tracking Generator

2

Power Meter

3

Remote Control Software

Instek_GSP-810
