Features:

  • Test voltages to up 5 kV and save time by trending on the spot only with Fluke Connect™
  • CAT III 1000 V, CAT IV 600 V safety rating
  • Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
  • Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
  • Long battery life gives the user over 750 tests between charges
  • Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Large digital/analog LCD for easy viewing
  • Capacitance and leakage current measurement
  • Ramp function for breakdown testing
  • Resistance measurements up to 2 TΩ
  • Timer settings up to 99 minutes for timed tests
  • 3-year warranty
View full details
More Details
Specifications
Datasheets

Accessories:

  • Insulation Resistance Tester
  • IR3000FC1550 Connector
  • Test Cables with Alligator Clips
  • Infrared adapter with interface cable
  • FlukeView® Forms Basic CD-ROM
  • AC Power Cord
  • English Manual
  • Users Manual on CD-ROM
  • Quick Reference Card
  • Software License Agreement
  • Registration Card
  • FlukeView® Forms Installation Guide
  • USB-IR Cable Installation Guide
  • Soft Carrying Case

Application:

  • General purpose electrical maintenance
  • Preventive and predictive maintenance
  • Troubleshooting

Specifications:

Test voltage (DC):

  • 250 v
  • 500 v
  • 1000 v
  • 2500 v
  • 5000 v

Leakage Current Measurement:

  • Range: 0.01 uF to 15.00°F
  • Accuracy: ± (15 % rdg + 0.03°F)

Timer:

  • Range: 0 to 99 minutes
  • Accuracy: Resolution Setting: 1 minute Indication: 1 second

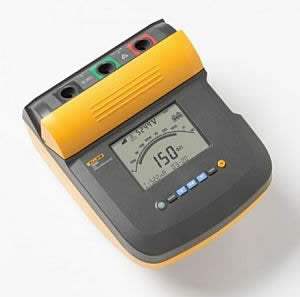

The Fluke 1550 FC is a Insulation Tester with IR3000 FC Connector. This insulation resistance tester offers digital insulation testing up to 5 kV, making it ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables. It can conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating. With measurement storage and PC interface, it is the perfect tool for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur.

Model No

1550C

Condition

New

Manufacturer

Fluke
